Connector End View (C1046) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1046	INLINE	BK	12C50814B485	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
2L1T-14421-BA	EU2Z-14421-CA	1.50

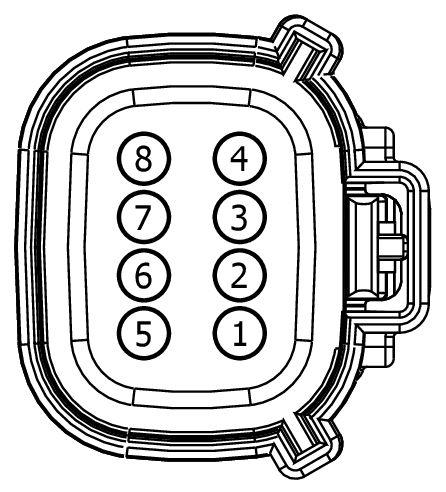

MALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE802 (BN-BU)	22	2L1T-14421-BA
2	RE324 (BN-GN)	22	2L1T-14421-BA
3	RE344 (GN)	22	2L1T-14421-BA
4	VE828 (YE-OG)	22	2L1T-14421-BA
5	VE801 (VT-OG)	22	2L1T-14421-BA
6	RE323 (WH-BN)	22	2L1T-14421-BA
7	RE345 (VT-GY)	22	2L1T-14421-BA
	8	VE829 (GN-BU)	22	2L1T-14421-BA

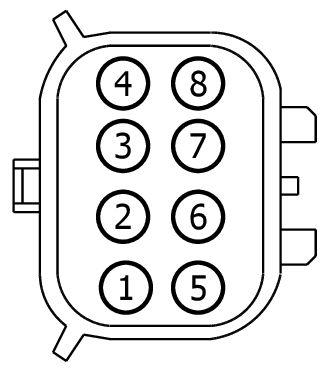

FEMALE

Harness

14B485

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE802 (BN-BU)	18	7C3T-14474-DA
2	RE324 (BN-GN)	18	7C3T-14474-DA
3	RE344 (GN-BN)	18	7C3T-14474-DA
4	VE828 (YE-OG)	18	7C3T-14474-DA
5	VE801 (VT-OG)	18	7C3T-14474-DA
6	RE323 (WH-BN)	18	7C3T-14474-DA
7	RE345 (VT-GY)	18	7C3T-14474-DA
	8	VE829 (GN-BU)	18	7C3T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Flashing LED
Lamp - Park/Turn/Stop
Mirror - Sideview
Mirror - Sideview / Heated
Module - Anti-Lock Brake System
