Connector End View (C1045) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1045 | INLINE | DK GY | 12A5818C290 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-CEA | KU2Z-14474-AA | 6.30 |
| 97BG-14421-CEA | Not Available |

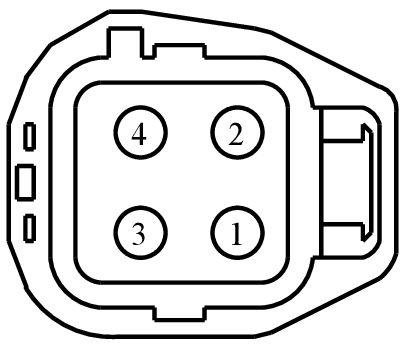

MALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE632 (GY-BU) | 14 | 97BG-14421-CEA | |||
| 2 | GD131 (BK-GY) | 14 | 97BG-14421-CEA | |||
| 3 | CE632 (GY-BU) | 14 | 97BG-14421-CEA | |||
| 4 | GD131 (BK-GY) | 14 | 97BG-14421-CEA | |||

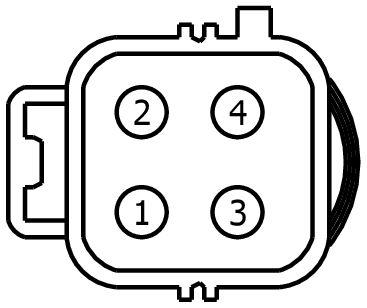

FEMALE
Harness
8C290
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE632 (GY-BU) | 14 | 97BG-14474-CEA | |||
| 2 | GD131 (BK-GY) | 14 | 97BG-14474-CEA | |||
| 3 | CE632 (GY-BU) | 14 | 97BG-14474-CEA | |||
| 4 | GD131 (BK-GY) | 14 | 97BG-14474-CEA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1343
Service Part Number:
DU2Z-14S411-ABA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-750
- Motor - Engine Cooling Fan
