Connector End View (C1033) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1033 | INLINE | BK | 14B24212A581 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |

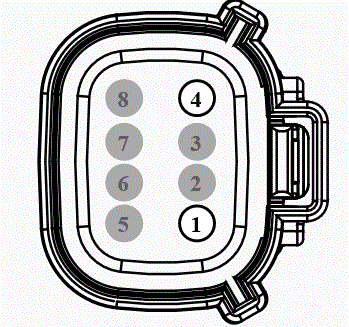

MALE
Harness
14B242
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (BU-GY) | 20 | N/A | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | GD131 (BK-GY) | 20 | N/A | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||

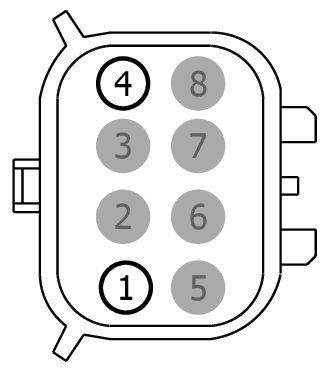

FEMALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (BU-GY) | 20 | BU5T-14474-UA | |||
| 2 | * | * | N/A | |||
| 3 | * | * | N/A | |||
| 4 | GD131 (BK-GY) | 20 | BU5T-14474-UA | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1605
Service Part Number:
FU2Z-14S411-DC
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Connector - Inline
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Flashing LED
- Lamp - Park/Turn/Stop
- Mirror - Sideview
- Mirror - Sideview / Heated
- Module - Anti-Lock Brake System
Pigtail Kit Part Number WPT-1524
Service Part Number:
CU2Z-14S411-ALB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Actuator - Door Lock - LH - Sliding Door
- Actuator - Door Lock - RH - Sliding Door
- Connector - Inline
- Inflator - Safety Belt
