Connector End View (C1026) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1026 | INLINE | LT GY | 12A58112A581 | See Below | ||||

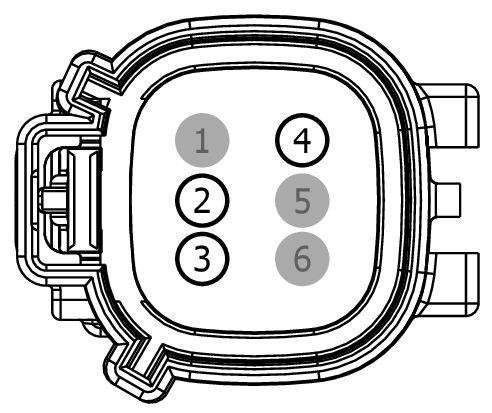

MALE
Harness
12A581

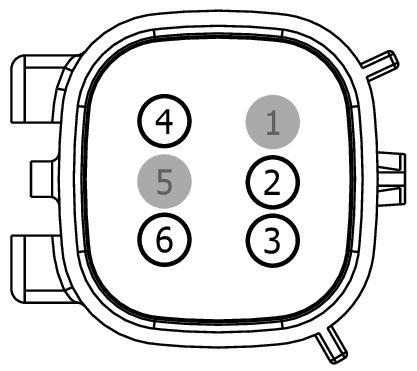

FEMALE
Harness
12A581
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.50 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | VDB49 (YE-OG) | 22 | BU5T-14421-HA | |||
| 3 | VDB50 (BU-OG) | 22 | BU5T-14421-HA | |||
| 4 | CBB23 (BN-YE) | 22 | BU5T-14421-HA | |||
| 5 | * | * | N/A | |||
| 6 | GD129 (BK-YE) | 22 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | VDB49 (YE-OG) | 22 | BU5T-14474-UA | |||
| 3 | VDB50 (BU-OG) | 22 | BU5T-14474-UA | |||
| 4 | CBB23 (BN-YE) | 22 | BU5T-14474-UA | |||
| 5 | * | * | N/A | |||
| 6 | * | * | N/A | |||

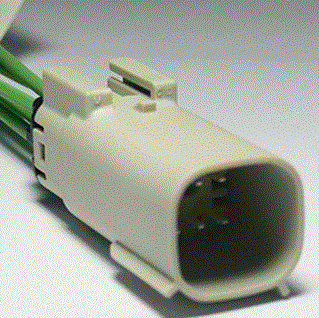

Available Pigtail Kits
Pigtail Kit Part Number WPT-1621
Service Part Number:
GU2Z-14S411-TB
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Park/Turn/Stop
