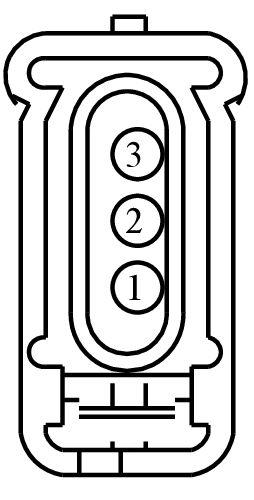

Connector End View (C1023) - FRONT PARK/TURN LAMP LH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1023	FRONT PARK/TURN LAMP LH	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD129 (BK-YE)	22	GROUND - HEADLAMP PANEL/GOR LEFT	97BG-14474-ADA
2	CLS05 (BU-GY)	22	CTRL MOD. - PARK	97BG-14474-ADA
3	CLS21 (BU-GN)	22	CTRL MOD. - TURN LAMP LEFT FRONT	97BG-14474-ADA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1025

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-AB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Lamp - Front Park
Lamp - Front Turn
Lamp - Park/Turn
Lamp - Park/Turn/Stop
Lamp - Rear Park
Lamp - Reverse
Lamp - Stop
Lamp - Stop/Park
Switch - Park Brake
