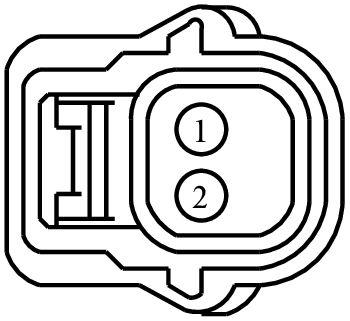

Connector End View (C356) - DRIVER SEAT POSITION SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C356 | DRIVER SEAT POSITION SENSOR | BK | 14D231 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD901 (BK) | 20 | GROUND - SEAT # RESTRAINTS CLEAN | N/A | ||||
| 2 | VR215 (YE-VT) | 20 | SENSOR - SEAT TRACK POSITION DRIVER | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1314
Service Part Number:
8U2Z-14S411-AAC
Gauge:
20
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Crash (Engine Compartment)
- Sensor - Seat Track Position
- Sensor - Side Impact
- Solenoid - Down Shift
- Solenoid - Torque Control Coupling
- Valve - Heated PCV
- Valve - Heater Core Shut Off
- Valve - Transmission Fluid Warmer
