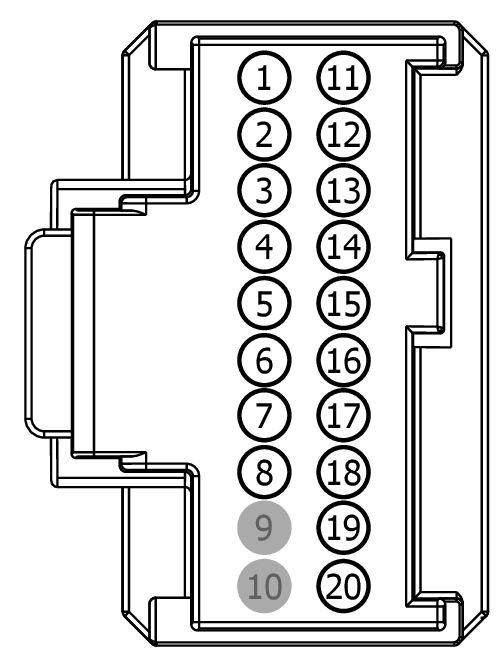

Connector End View (C341E) - DRIVER FRONT SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341E	DRIVER FRONT SEAT MODULE (DSM)	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP09 (VT-OG)	20	SWITCH - ADJUST. PEDALS # FORWARD	N/A
2	CPP10 (BN-BU)	20	SWITCH - ADJUST. PEDALS # REARWARD	N/A
3	CPR47 (GY-BN)	20	CTRL MOD. - POWER RUNNING BOARDS # SENSOR +	N/A
4	RPS78 (VT-GN)	20	CTRL MOD. - FRONT PASSENGER SEAT SENSORS RECLINE -	N/A
5	LPS78 (BN-YE)	20	CTRL MOD. - FRONT PASSENGER SEAT SENSORS RECLINE +	N/A
6	VPS86 (VT-GN)	20	SENSOR - FRONT PASSENGER SEAT RECLINE	N/A
7	CPR53 (GN-BN)	20	CTRL MOD. - LEFT KICK SWITCH	N/A
8	CPR54 (BU-BN)	20	CTRL MOD. - RIGHT KICK SWITCH	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL	N/A
12	VPS09 (BN-BU)	20	SENSOR - DRIVER SEAT SLIDE FORWARD/REARWARD	N/A
13	VPS10 (BU-GN)	20	SENSOR - DRIVER SEAT HEIGHT FRONT / TILT	N/A
14	VPS12 (GY-OG)	20	SENSOR - DRIVER SEAT RECLINE	N/A
15	VPP16 (BU-BN)	20	SENSOR - ADJUSTABLE PEDAL	N/A
16	VPP08 (WH)	20	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)	N/A
17	VPP17 (VT-BN)	20	SENSOR - ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD)	N/A
18	VPR43 (GY-BU)	20	SENSOR - POWER RUNNING BOARDS # DRIVER POSITION	N/A
19	VPR46 (GY-OG)	20	SENSOR - POWER RUNNING BOARDS # PASSENGER POSITION	N/A
20	RPS12 (YE-VT)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Camera - Reverse Park Aid
Module - Image Processing
Radio - Amplifier
