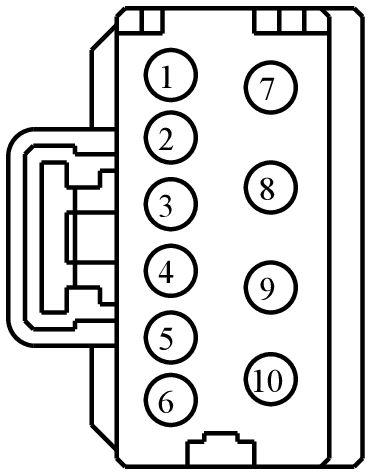

Connector End View (C341B) - DRIVER FRONT SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341B	DRIVER FRONT SEAT MODULE (DSM)	GY	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS05 (BU-WH)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL UP	N/A
2	CPP04 (GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP	N/A
3	CPS04 (YE-OG)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL DOWN	N/A
4	CPP23 (VT-GY)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN	N/A
5	CPS01 (GN-BU)	14	CTRL MOD. - DRIVER SEAT SLIDE FORWARD	N/A
6	CPS06 (GN-WH)	14	CTRL MOD. - DRIVER SEAT SLIDE REARWARD	N/A
7	CPR44 (BN-WH)	16	CTRL MOD. - POWER RUNNING BOARDS # PASSENGER DEPLOY	N/A
8	CPR45 (VT-GY)	16	CTRL MOD. - POWER RUNNING BOARDS # PASSENGER STOW	N/A
9	CHS07 (GY-BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +	N/A
10	RHS02 (BU-OG)	16	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1354

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ADA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Radio - Amplifier
