Connector End View (C341A) - DRIVER FRONT SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

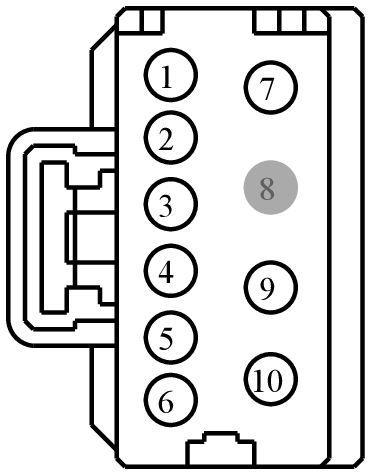

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341A	DRIVER FRONT SEAT MODULE (DSM)	BK	14D231	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS07 (GY-BN)	14	CTRL MOD. - DRIVER SEAT RECLINE INCLINE	N/A
2	CPP22 (GY-BN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD	N/A
3	CPS03 (VT-GY)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP	N/A
4	CPS08 (VT-OG)	14	CTRL MOD. - DRIVER SEAT RECLINE RECLINE	N/A
5	CPS02 (GY-YE)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT DOWN	N/A
6	CPP03 (GN-VT)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD	N/A
7	CBX05 (VT-RD)	14	POWER - SEAT # POWER SEAT SWITCH	N/A
8	*	*	Not Used	N/A
9	GD904 (BK-BU)	14	GROUND - SEAT	N/A
10	RHS07 (BU)	16	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1042

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-CA

Gauge:

12 14

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Module - Transfer Case Shift Control
