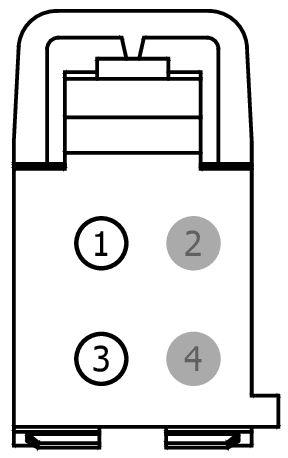

Connector End View (C332) - FRONT SEAT HORIZONTAL MOTOR RH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C332	FRONT SEAT HORIZONTAL MOTOR RH	DK GY	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD	N/A
2	*	*	Not Used	N/A
3	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1350

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-UA

Gauge:

16 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Power Seat Track
Motor - Seat Height (Front)
