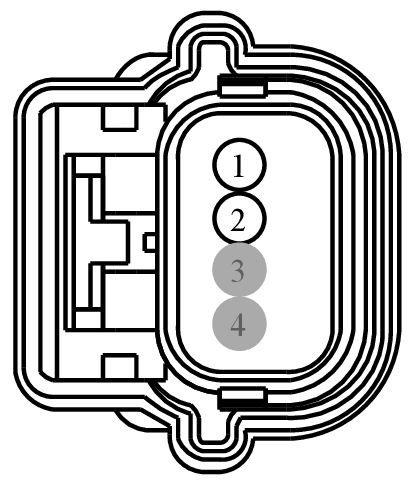

Connector End View (C325) - PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C325	PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA	BK	14B079/15080	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK07 (BU-GY)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR +	8U5T-14474-BB
2	RPK07 (GN-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR -	8U5T-14474-BB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Antenna - Keyless Entry
Sensor - Brake Pedal Position
Sensor - Clutch Master Cylinder
