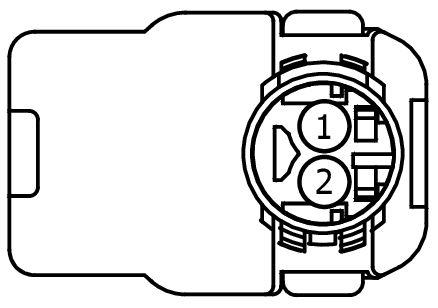

Connector End View (C323A) - FRONT SEATBELT RETRACTOR PRETENSIONER AND LOAD LIMITER LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C323A | FRONT SEATBELT RETRACTOR PRETENSIONER AND LOAD LIMITER LH | YE-BK | 14A005 | part# N/A | Not Available |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| P/O ASSY | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR188 (VT-GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER OUTBOARD + | P/O ASSY | ||||
| 2 | RR188 (WH-VT) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER OUTBOARD - | P/O ASSY | ||||
