Connector End View (C316) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline: Description Color Harness Base Part # Service Pigtail
C316 INLINE GY 14A005/14H05714H057/14405 Not Available

Check for Terminal Part Numbers

Terminal Part Number  Service Part Number  Size
8U5T-14421-BA EU2Z-14421-DA 2.80
9U5T-14421-BA EU2Z-14421-BA 0.64
EU5T-14474-EA EU2Z-14474-AB 2.80
BU5T-14474-UA DU2Z-14474-DA 1.50
7C3T-14474-EA DU2Z-14474-DA 1.50
EU5T-14474-FA EU2Z-14474-AB 2.80
DU5T-14474-TAB DU2Z-14474-CA 0.64
CU5T-14474-EB DU2Z-14474-CA 0.64
TE PIN Not Available
TE SOCKET Not Available
AU5T-14421-DA EU2Z-14421-CA 1.50
AU5T-14421-EA EU2Z-14421-CA 1.50
EU5T-14474-GA Not Available
CU5T-14474-DB DU2Z-14474-CA 0.64

MALE

Harness

14A005/14H057

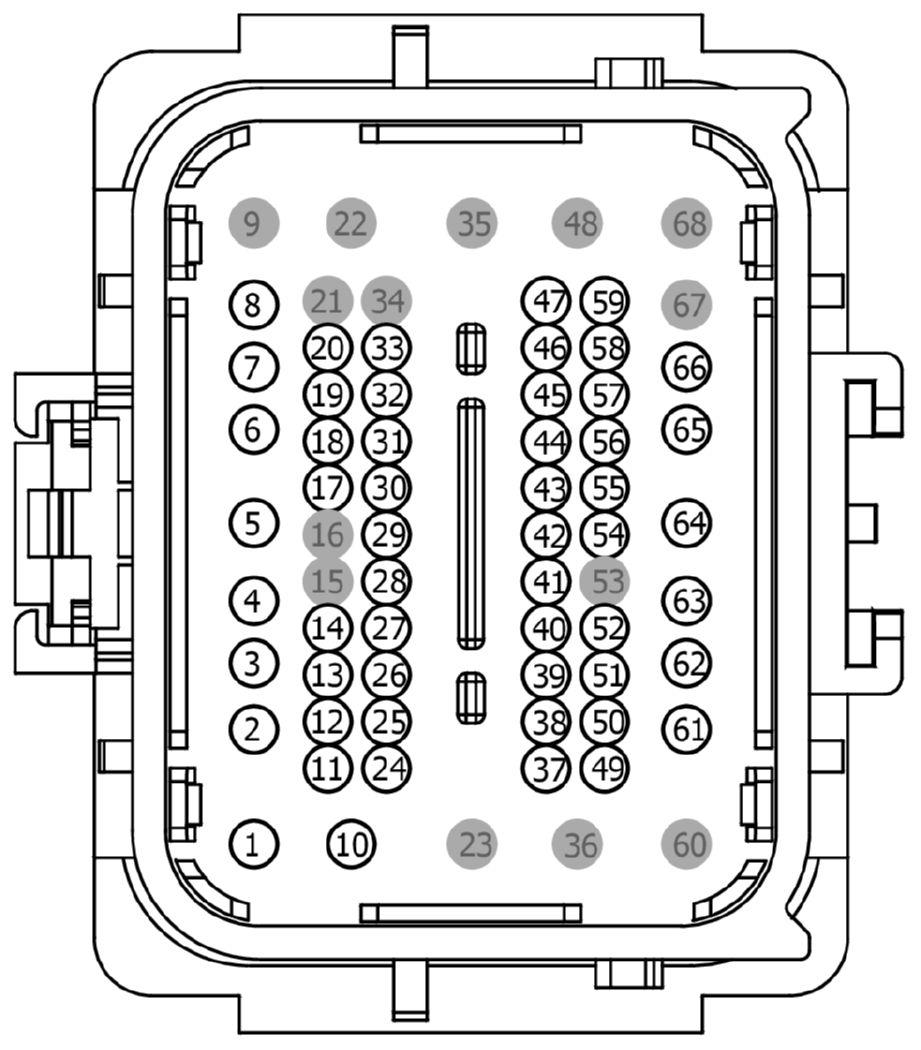

GFDWR123908Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CAT14 (OG) 12 8U5T-14421-BA
2 DMP38 (BK) 20 AU5T-14421-DA
3 VMP38 (GY-VT) 22 AU5T-14421-DA
4 VMP39 (BU-OG) 22 AU5T-14421-DA
5 VMP51 (BK) 20 TE PIN
6 CPL11 (GY-BN) 16 AU5T-14421-EA
6 CPL11 (GY-BN) 18 AU5T-14421-EA
7 CPL13 (BN-GN) 16 AU5T-14421-EA
7 CPL13 (BN-GN) 18 AU5T-14421-EA
8 VYA07 (BU-GY) 22 AU5T-14421-DA
9 * * N/A
10 CAT19 (BU) 12 8U5T-14421-BA
11 VMF32 (BU-BN) 22 9U5T-14421-BA
12 VMF27 (YE-GY) 22 9U5T-14421-BA
13 VMF12 (GN) 22 9U5T-14421-BA
14 VMF13 (YE) 22 9U5T-14421-BA
15 * * N/A
16 * * N/A
17 CPR63 (GY-YE) 22 9U5T-14421-BA
18 DMP19 (BK) 20 9U5T-14421-BA
19 RMP19 (BU-GY) 22 9U5T-14421-BA
20 VMP19 (WH-GN) 22 9U5T-14421-BA
21 * * N/A
22 * * N/A
23 * * N/A
24 VMF28 (YE-OG) 22 9U5T-14421-BA
25 VMF25 (YE) 22 9U5T-14421-BA
26 VMF12 (GN-VT) 22 9U5T-14421-BA
27 VMF13 (YE-BU) 22 9U5T-14421-BA
28 VAT41 (VT-BN) 22 9U5T-14421-BA
29 RAT41 (WH-BU) 22 9U5T-14421-BA
30 VLN74 (GN-BU) 22 9U5T-14421-BA
31 VMF31 (BU-GN) 22 9U5T-14421-BA
32 RMC32 (GN-BU) 22 9U5T-14421-BA
33 VMC11 (YE-VT) 22 9U5T-14421-BA
34 * * N/A
35 * * N/A
36 * * N/A
37 RMP07 (GN-WH) 22 9U5T-14421-BA
38 CLF02 (GY-BN) 20 9U5T-14421-BA
39 CMF17 (VT-GY) 22 9U5T-14421-BA
40 RMF17 (BU-BN) 22 9U5T-14421-BA
41 VDN14 (YE-VT) 22 9U5T-14421-BA
42 CPRH0 (YE-BU) 22 9U5T-14421-BA
43 VDB27 (VT-GN) 22 9U5T-14421-BA
44 VDB28 (GY-VT) 22 9U5T-14421-BA
45 LLF16 (WH-GN) 22 9U5T-14421-BA
46 RLF16 (VT-OG) 22 9U5T-14421-BA
47 VLF16 (WH-BN) 22 9U5T-14421-BA
48 * * N/A
49 VMF26 (WH-OG) 22 9U5T-14421-BA
50 LMP07 (BU-WH) 22 9U5T-14421-BA
51 RMF16 (VT-BN) 22 9U5T-14421-BA
52 CMF16 (YE-GN) 22 9U5T-14421-BA
53 * * N/A
54 VDN04 (VT-WH) 22 9U5T-14421-BA
55 CLN13 (WH-BU) 22 9U5T-14421-BA
56 RYA21 (BN) 22 9U5T-14421-BA
57 VYA21 (GY-BN) 22 9U5T-14421-BA
58 CBP02 (GN) 20 9U5T-14421-BA
58 CBP35 (YE-GY) 20 9U5T-14421-BA
59 CLN25 (WH-GN) 22 9U5T-14421-BA
60 * * N/A
61 RYA03 (BU-BN) 22 AU5T-14421-DA
62 HYA02 (OG-WH) 16 AU5T-14421-EA
63 HYA01 (OG-GN) 16 AU5T-14421-EA
64 VMP52 (BK) 20 TE PIN
65 CAT09 (GN) 16 AU5T-14421-EA
66 CAT06 (YE) 16 AU5T-14421-EA
67 * * N/A
68 * * N/A

FEMALE

Harness

14H057/14405

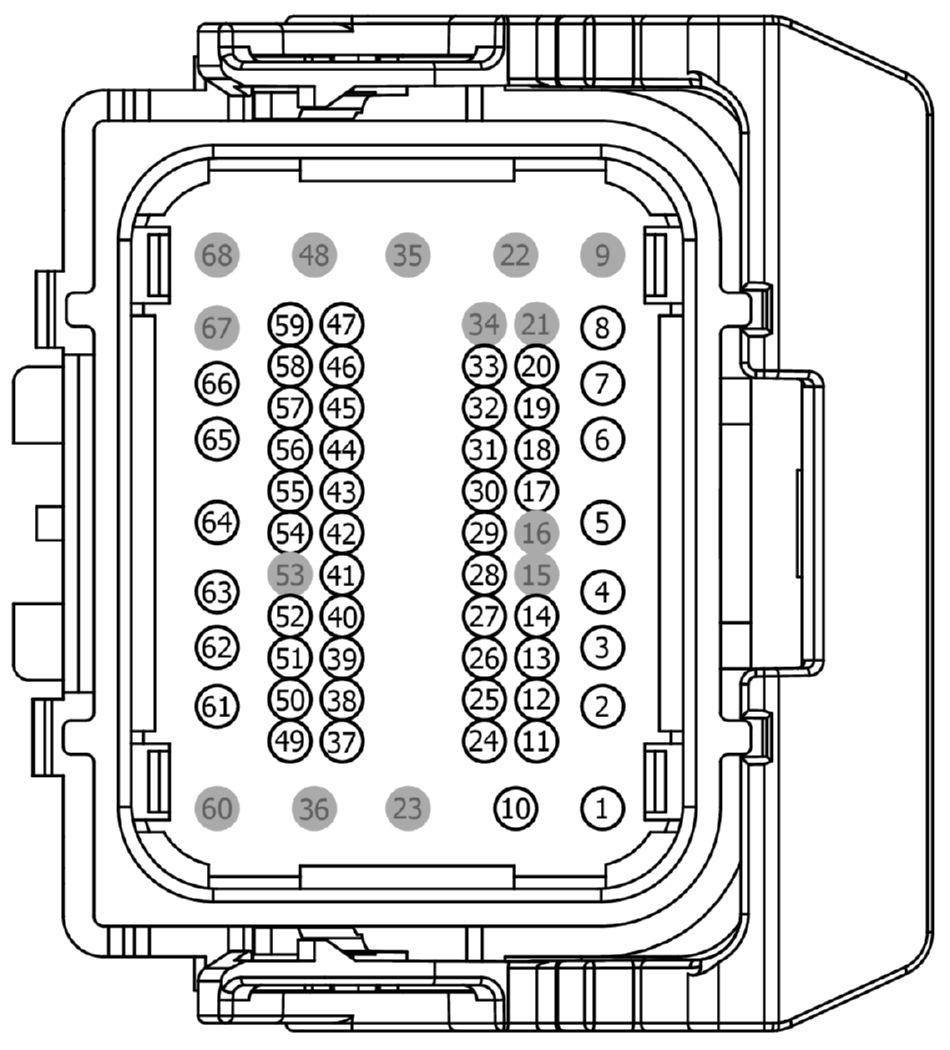

GFDWR123909Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CAT14 (OG) 12 EU5T-14474-EA|EU5T-14474-GA
1 CAT14 (OG) 16 EU5T-14474-EA|EU5T-14474-GA
2 DMP38 (BK) 20 BU5T-14474-UA
3 VMP38 (GY-VT) 22 BU5T-14474-UA
4 VMP39 (BU-OG) 22 BU5T-14474-UA
5 VMP51 (BK) 20 TE SOCKET
6 CPL11 (GY-BN) 14 7C3T-14474-EA
7 CPL13 (BN-GN) 14 7C3T-14474-EA
8 VYA07 (BU-GY) 22 BU5T-14474-UA
9 * * N/A
10 CAT19 (BU) 12 EU5T-14474-FA|EU5T-14474-GA
11 VMF32 (BU-BN) 22 DU5T-14474-TAB
12 VMF27 (YE-GY) 22 DU5T-14474-TAB
13 VMF12 (GN-VT) 22 DU5T-14474-TAB
14 VMF13 (YE-BU) 22 DU5T-14474-TAB
15 * * N/A
16 * * N/A
17 CPR63 (GY-YE) 22 DU5T-14474-TAB
18 DMP19 (BK) 20 CU5T-14474-EB
19 RMP19 (BU-GY) 22 DU5T-14474-TAB
20 VMP19 (WH-GN) 22 DU5T-14474-TAB
21 * * N/A
22 * * N/A
23 * * N/A
24 VMF28 (YE-OG) 22 DU5T-14474-TAB
25 VMF25 (YE) 22 DU5T-14474-TAB
26 VMF12 (GN-VT) 22 DU5T-14474-TAB
27 VMF13 (YE-BU) 22 DU5T-14474-TAB
28 VAT41 (VT-BN) 22 DU5T-14474-TAB
29 RAT41 (WH-BU) 22 DU5T-14474-TAB
30 VLN74 (GN-BU) 22 DU5T-14474-TAB
31 VMF31 (BU-GN) 22 DU5T-14474-TAB
31 VMF31 (BU-WH) 22 DU5T-14474-TAB
32 RMC32 (GN-BU) 18 CU5T-14474-DB
33 VMC11 (YE-VT) 18 CU5T-14474-DB
34 * * N/A
35 * * N/A
36 * * N/A
37 RMP07 (GN-WH) 22 DU5T-14474-TAB
38 CLF02 (GY-BN) 20 CU5T-14474-EB
39 CMF17 (VT-GY) 22 DU5T-14474-TAB
40 RMF17 (BU-BN) 22 DU5T-14474-TAB
41 VDN14 (YE-VT) 22 DU5T-14474-TAB
42 CPRH0 (YE-BU) 22 DU5T-14474-TAB
43 VDB27 (VT-GN) 22 DU5T-14474-TAB
44 VDB28 (GY-VT) 22 DU5T-14474-TAB
45 LLF16 (WH-GN) 22 DU5T-14474-TAB
46 RLF16 (VT-OG) 22 DU5T-14474-TAB
47 VLF16 (WH-BN) 22 DU5T-14474-TAB
48 * * N/A
49 VMF26 (WH-OG) 22 DU5T-14474-TAB
50 LMP07 (BU-WH) 22 DU5T-14474-TAB
51 RMF16 (VT-BN) 22 DU5T-14474-TAB
52 CMF16 (YE-GN) 22 DU5T-14474-TAB
53 * * N/A
54 VDN04 (VT-WH) 22 DU5T-14474-TAB
54 VDN04 (WH-VT) 22 DU5T-14474-TAB
55 CLN13 (WH-BU) 22 DU5T-14474-TAB
56 RYA21 (BN) 22 DU5T-14474-TAB
57 VYA21 (GY-BN) 22 DU5T-14474-TAB
58 CBP02 (GN) 20 CU5T-14474-EB
59 CLN25 (WH-GN) 22 DU5T-14474-TAB
60 * * N/A
61 RYA03 (BU-BN) 22 BU5T-14474-UA
62 HYA02 (OG-WH) 16 7C3T-14474-DA
63 HYA01 (OG-GN) 16 7C3T-14474-DA
64 VMP52 (BK) 20 TE SOCKET
65 CAT09 (GN) 16 7C3T-14474-DA
66 CAT06 (YE) 16 7C3T-14474-DA
67 * * N/A
68 * * N/A
