Connector End View (C299) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C299 | INLINE | LT GY | 19F56112A581 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-CBA | KU2Z-14421-AA | 6.30 |
| 97BG-14474-CBA | JU2Z-14474-AB | 6.30 |
| 97BG-14421-CCA | KU2Z-14421-AA | 6.30 |
| 97BG-14474-CCA | JU2Z-14474-AB | 6.30 |

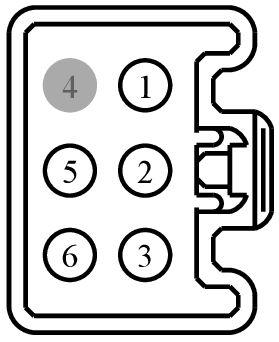

MALE
Harness
19F561

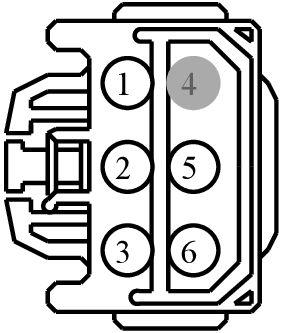

FEMALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CHP02 (WH-OG) | 12 | 97BG-14421-CBA | |||
| 2 | CHP06 (WH-GN) | 12 | 97BG-14421-CBA | |||
| 3 | CHP07 (BN-VT) | 12 | 97BG-14421-CBA | |||
| 4 | * | * | N/A | |||
| 5 | GD132 (BK-VT) | 10 | 97BG-14421-CCA | |||
| 6 | GD132 (BK-VT) | 10 | 97BG-14421-CCA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CHP02 (WH-OG) | 12 | 97BG-14474-CBA | |||
| 2 | CHP06 (WH-GN) | 12 | 97BG-14474-CBA | |||
| 3 | CHP07 (BN-VT) | 12 | 97BG-14474-CBA | |||
| 4 | * | * | N/A | |||
| 5 | GD132 (BK-VT) | 10 | 97BG-14474-CCA | |||
| 6 | GD132 (BK-VT) | 10 | 97BG-14474-CCA | |||

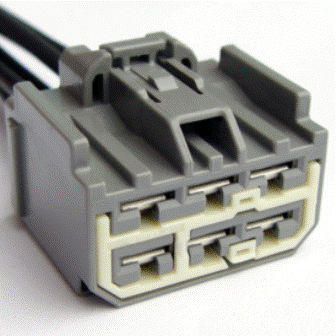

Available Pigtail Kits
Pigtail Kit Part Number WPT-363
Service Part Number:
3U2Z-14S411-HEA
Gauge:
10 12 16
Pin material:
Tin & Gold
Cavities:
6
Vehicle Uses:
- Switch - Heater / A/C Blower (Front)
