Connector End View (C286) - LIGHT/SUNLOAD SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C286	LIGHT/SUNLOAD SENSOR	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT	3F2T-14474-SA
2	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +	3F2T-14474-SA
3	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT	3F2T-14474-SA
4	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -	3F2T-14474-SA

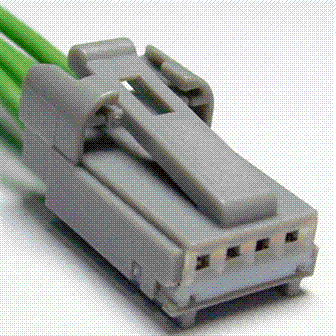

Available Pigtail Kits

Pigtail Kit Part Number WPT-1013

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-TA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Auto Lamps
Sensor - Sunload
