Connector End View (C260) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C260 | INLINE | BK | 12A58114A005 | Not Available | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| MU5T-14487-BA | Not Available |

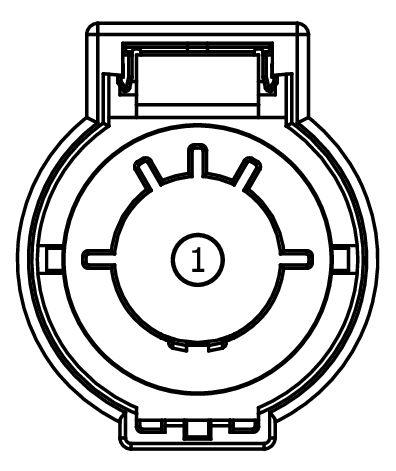

MALE
Harness
12A581

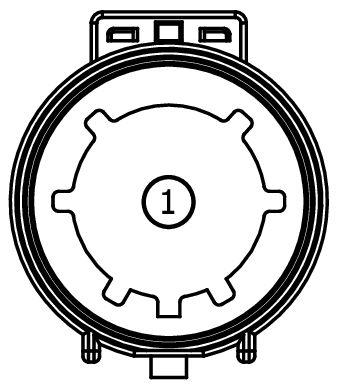

FEMALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | SB212 (GN-RD) | 4 | secondary generator | *LU5T-14461-HB |
| 1 | SBBA3 (GN-RD) | 4 | police | *LU5T-14461-HB |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | SB212 (GN-RD) | 4 | secondary generator | MU5T-14487-BA |
| 1 | SBBA3 (GN-RD) | 4 | police | MU5T-14487-BA |
