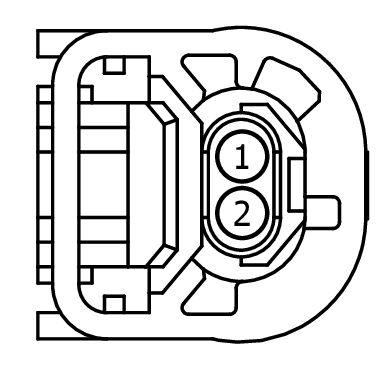

Connector End View (C242G) - IMAGE PROCESSING MODULE A (IPMA)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C242G | IMAGE PROCESSING MODULE A (IPMA) | BK | 14401 | part# N/A | Not Available |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VDB51 (BN-BU) | 26 | CONNECTOR - DIAGNOSTIC # ECG/ADAS ETHERNET + | N/A | ||||
| 2 | VDB52 (GY-BN) | 26 | CONNECTOR - DIAGNOSTIC # ECG/ADAS ETHERNET - | N/A | ||||
