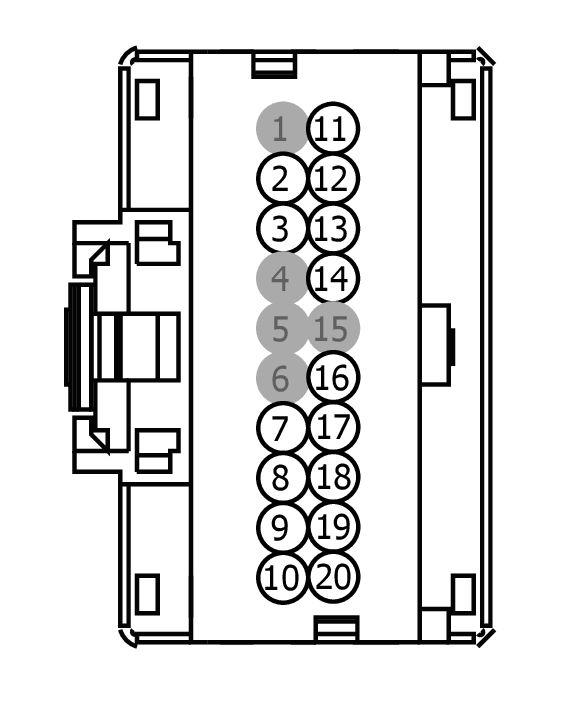

Connector End View (C242C) - IMAGE PROCESSING MODULE A (IPMA)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C242C	IMAGE PROCESSING MODULE A (IPMA)	GY	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	RMF15 (GN)	22	CTRL MOD. - RIGHT FRONT RADAR GROUND	DU5T-14474-EAB
3	RMF13 (BN-GN)	22	CTRL MOD. - LEFT FRONT RADAR GROUND	DU5T-14474-EAB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	DMP19 (*)	22	CAMERA - PARKING AID REAR VIDEO D	DU5T-14474-EAB
8	VMP39 (BU-OG)	22	CAMERA - TRAILER TOW (NTSC -)	DU5T-14474-EAB
9	VMP38 (GY-VT)	22	CAMERA - TRAILER TOW (NTSC+)	DU5T-14474-EAB
10	DMP56 (*)	22	SHIELD	DU5T-14474-EAB
11	CMF15 (GN-BU)	22	CTRL MOD. - RIGHT FRONT RADAR POWER	DU5T-14474-EAB
12	VMF11 (WH-OG)	22	CTRL MOD. - FRONT RADAR # CAN BUS LOW	DU5T-14474-EAB
13	VMF10 (WH-VT)	22	CTRL MOD. - FRONT RADAR # CAN BUS HIGH	DU5T-14474-EAB
14	CMF13 (YE-OG)	22	CTRL MOD. - LEFT FRONT RADAR POWER	DU5T-14474-EAB
15	*	*	Not Used	N/A
16	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	DU5T-14474-EAB
17	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	DU5T-14474-EAB
18	DMP38 (*)	22	SHIELD	DU5T-14474-EAB
19	VMP57 (YE-GN)	22	CAMERA - REAR VIDEO +	DU5T-14474-EAB
20	VMP56 (BN-BU)	22	CAMERA - REAR VIDEO -	DU5T-14474-EAB
