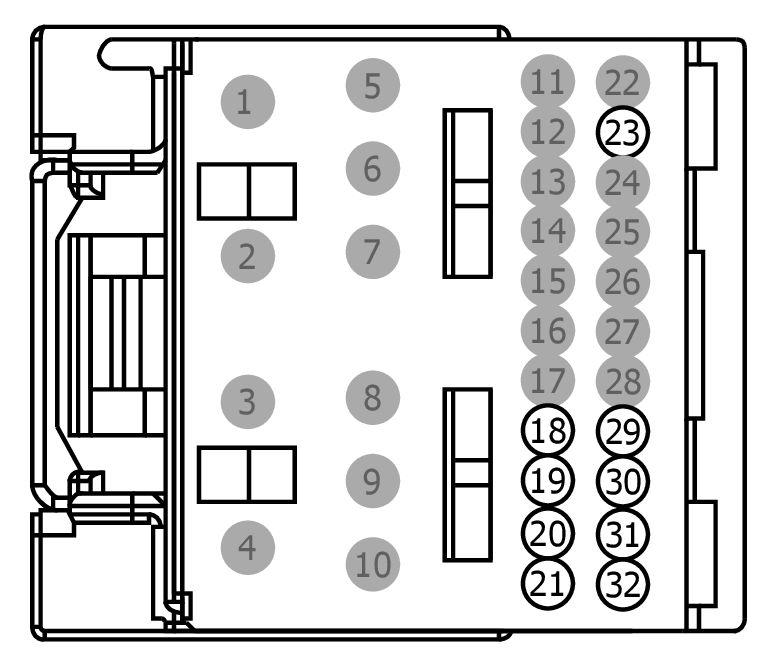

Connector End View (C240B) - AUDIO FRONT CONTROL MODULE (ACM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C240B | AUDIO FRONT CONTROL MODULE (ACM) | LT GY | 14401 | part# N/A | Not Available |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| DU5T-14474-EAB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
| 17 | * | * | Not Used | N/A | ||||
| 18 | VMEF7 (GY-BU) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK + | DU5T-14474-EAB | ||||
| 19 | VME80 (VT-GN) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | DU5T-14474-EAB | ||||
| 20 | VME52 (BU) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + | DU5T-14474-EAB | ||||
| 21 | VME53 (VT-GN) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + | DU5T-14474-EAB | ||||
| 22 | * | * | Not Used | N/A | ||||
| 23 | CME27 (YE-VT) | 22 | CTRL MOD. - AUDIO # ENABLE / CLIPPING | DU5T-14474-EAB | ||||
| 24 | * | * | Not Used | N/A | ||||
| 25 | * | * | Not Used | N/A | ||||
| 26 | * | * | Not Used | N/A | ||||
| 27 | * | * | Not Used | N/A | ||||
| 28 | * | * | Not Used | N/A | ||||
| 29 | VMEF8 (WH-BN) | 22 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK - | DU5T-14474-EAB | ||||
| 30 | RME80 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | DU5T-14474-EAB | ||||
| 31 | RME52 (GY-OG) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - | DU5T-14474-EAB | ||||
| 32 | RME53 (BN-WH) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - | DU5T-14474-EAB | ||||
