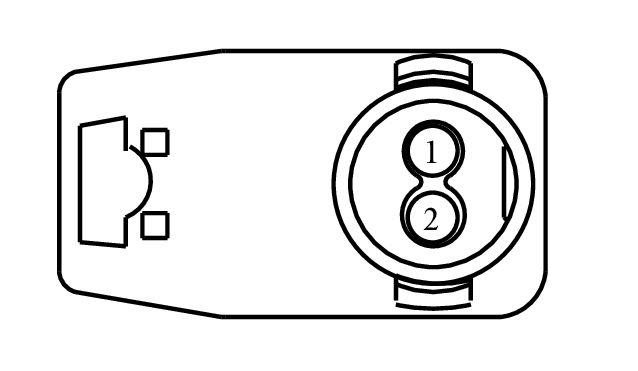

Connector End View (C216B) - DRIVER AIRBAG
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C216B | DRIVER AIRBAG | YE | PIA | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR102 (*) | * | DRIVER AIRBAG 2 + | N/A | ||||
| 2 | RR102 (*) | * | DRIVER AIRBAG 2 - | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1467
Service Part Number:
BU2Z-14S411-BKB
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
Pigtail Kit Part Number WPT-1227
Service Part Number:
BU2Z-14S411-BKA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
