Connector End View (C213) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C213 | INLINE | GY | 19F56114401 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |

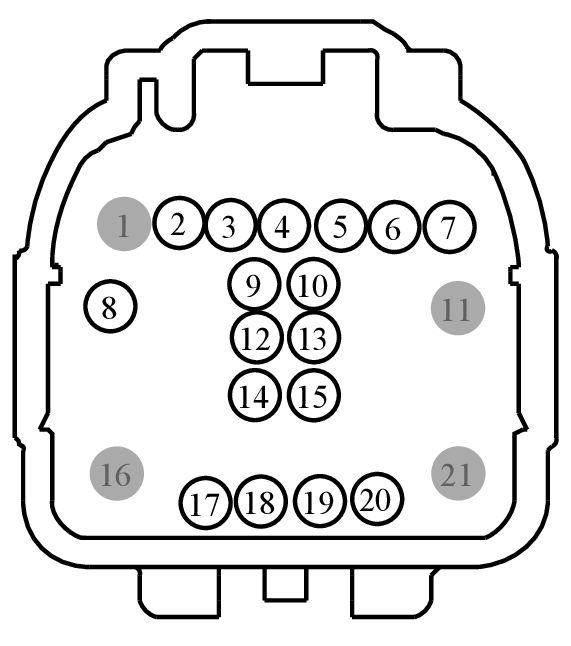

MALE
Harness
19F561
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | VH440 (BU-BN) | 22 | 9U5T-14421-BA | |||
| 3 | CH239 (BU-WH) | 22 | 9U5T-14421-BA | |||
| 4 | CH238 (YE-OG) | 22 | 9U5T-14421-BA | |||
| 5 | CH203 (GN-BN) | 22 | 9U5T-14421-BA | |||
| 6 | CH202 (BU-GN) | 22 | 9U5T-14421-BA | |||
| 7 | VH436 (YE-VT) | 22 | 9U5T-14421-BA | |||
| 8 | LH111 (BN-WH) | 22 | *97BG-14421-AAB | |||
| 9 | VH410 (GY-BU) | 20 | *9U5T-14421-BA | |||
| 10 | VH438 (GN-VT) | 22 | 9U5T-14421-BA | |||
| 11 | * | * | N/A | |||
| 12 | VH406 (VT-BN) | 20 | *9U5T-14421-BA | |||
| 13 | CH208 (GN-OG) | 22 | 9U5T-14421-BA | |||
| 14 | RH111 (GY-BU) | 22 | 9U5T-14421-BA | |||
| 15 | CH207 (BU-GY) | 22 | 9U5T-14421-BA | |||
| 16 | * | * | N/A | |||
| 17 | CH213 (BN-GN) | 22 | 9U5T-14421-BA | |||
| 18 | CH212 (BU-OG) | 22 | 9U5T-14421-BA | |||
| 19 | VH441 (WH-BN) | 22 | 9U5T-14421-BA | |||
| 20 | VH412 (YE-GY) | 20 | *9U5T-14421-BA | |||
| 21 | * | * | N/A | |||

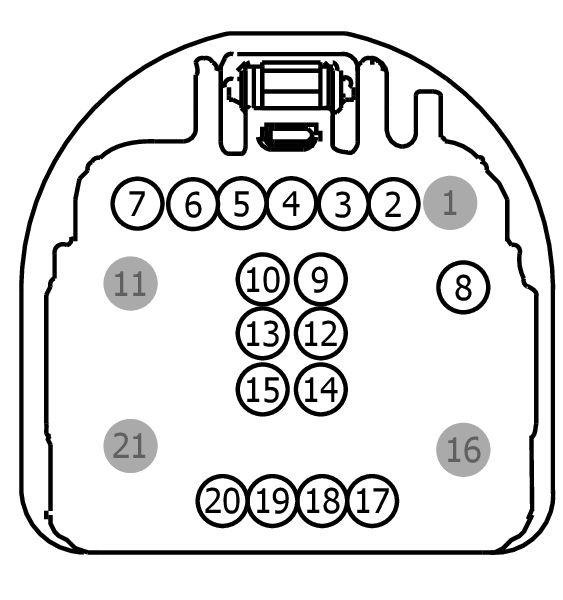

FEMALE
Harness
14401
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | VH440 (BU-BN) | 22 | 8U5T-14474-BB | |||
| 3 | CH239 (BU-WH) | 22 | 8U5T-14474-BB | |||
| 4 | CH238 (YE-OG) | 22 | 8U5T-14474-BB | |||
| 5 | CH203 (GN-BN) | 22 | 8U5T-14474-BB | |||
| 6 | CH202 (BU-GN) | 22 | 8U5T-14474-BB | |||
| 7 | VH436 (YE-VT) | 22 | 8U5T-14474-BB | |||
| 8 | LH111 (BN-WH) | 22 | N/A | |||
| 9 | VH410 (GY-BU) | 22 | 8U5T-14474-BB | |||
| 10 | VH438 (GN-VT) | 22 | 8U5T-14474-BB | |||
| 11 | * | * | N/A | |||
| 12 | VH406 (VT-BN) | 22 | 8U5T-14474-BB | |||
| 13 | CH208 (GN-OG) | 22 | 8U5T-14474-BB | |||
| 14 | RH111 (GY-BU) | 22 | 8U5T-14474-BB | |||
| 15 | CH207 (BU-GY) | 22 | 8U5T-14474-BB | |||
| 16 | * | * | N/A | |||
| 17 | CH213 (BN-GN) | 22 | 8U5T-14474-BB | |||
| 18 | CH212 (BU-OG) | 22 | 8U5T-14474-BB | |||
| 19 | VH441 (WH-BN) | 22 | 8U5T-14474-BB | |||
| 20 | VH412 (YE-GY) | 22 | 8U5T-14474-BB | |||
| 21 | * | * | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1463
Service Part Number:
GU2Z-14S411-GA
Gauge:
14 16 20
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1482
Service Part Number:
GU2Z-14S411-GB
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
21
Vehicle Uses:
- Connector - Inline
