Connector End View (C211) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C211 | INLINE | BN | 12A58114401 | Not Available | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-AAB | Not Available | |
| EU5T-14474-BAA | Not Available | |
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| 8U5T-14421-DA | EU2Z-14421-DA | 2.80 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| 8U5T-14421-EA | EU2Z-14421-DA | 2.80 |
| 8U5T-14421-CA | EU2Z-14421-DA | 2.80 |
| 8U5T-14421-BA | EU2Z-14421-DA | 2.80 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| EU5T-14474-FA | EU2Z-14474-AB | 2.80 |
| EU5T-14474-EA | EU2Z-14474-AB | 2.80 |
| EU5T-14474-HA | EU2Z-14474-AB | 2.80 |

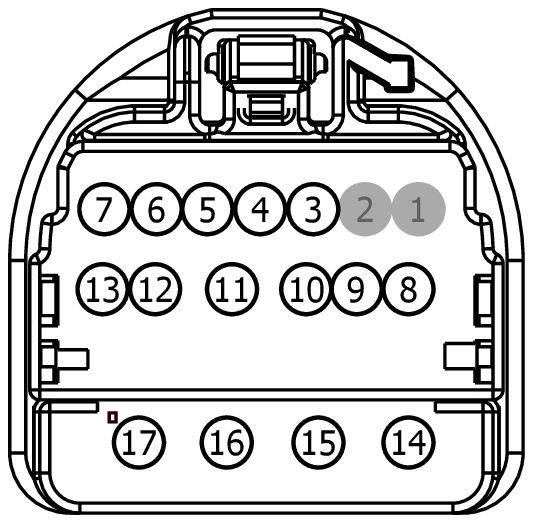

MALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | * | * | N/A | |||
| 3 | CCB61 (GY-OG) | 20 | 9U5T-14421-BA | |||
| 4 | VLF32 (YE) | 22 | 9U5T-14421-BA | |||
| 5 | DLF32 (*) | 22 | *9U5T-14421-BA | |||
| 6 | VLF33 (BU) | 22 | 9U5T-14421-BA | |||
| 7 | DLF33 (*) | 22 | *9U5T-14421-BA | |||
| 8 | VH101 (WH-VT) | 20 | 9U5T-14421-BA | |||
| 9 | CE436 (VT-OG) | 22 | 9U5T-14421-BA | |||
| 10 | CBBC5 (YE) | 22 | 9U5T-14421-BA | |||
| 11 | CH123 (VT-GN) | 22 | 8U5T-14421-EA | |||
| 12 | LLF15 (WH-GN) | 22 | 97BG-14421-AAB | |||
| 13 | RLF15 (GN-BU) | 22 | 97BG-14421-AAB | |||
| 14 | SBB38 (BN-RD) | 14 | 8U5T-14421-CA | |||
| 15 | CBB32 (GN-VT) | 16 | 8U5T-14421-DA | |||
| 16 | CBB33 (WH-BN) | 16 | 8U5T-14421-DA | |||
| 17 | SBBA5 (RD) | 10 | 8U5T-14421-BA | |||

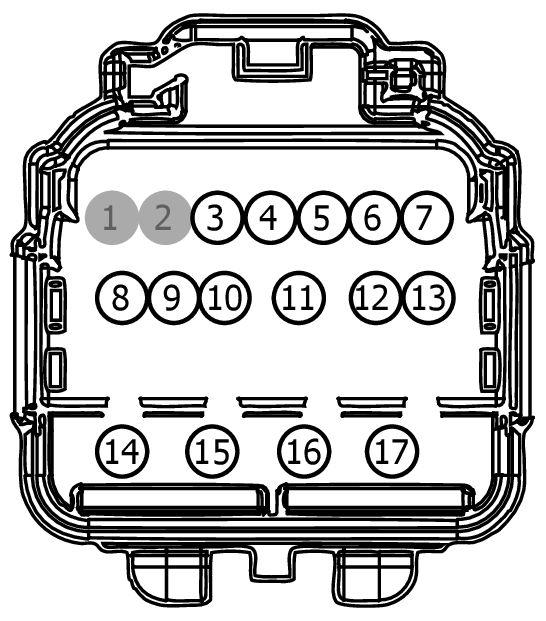

FEMALE
Harness
14401
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | * | * | N/A | |||
| 3 | CCB61 (GY-OG) | 22 | 8U5T-14474-BB | |||
| 4 | VLF32 (YE) | 22 | 8U5T-14474-BB | |||
| 5 | DLF32 (*) | 22 | 8U5T-14474-BB | |||
| 6 | VLF33 (BU) | 22 | 8U5T-14474-BB | |||
| 7 | DLF33 (*) | 22 | 8U5T-14474-BB | |||
| 8 | VH101 (WH-VT) | 22 | 8U5T-14474-BB | |||
| 9 | CE436 (VT-OG) | 22 | 8U5T-14474-BB | |||
| 10 | CBBC5 (YE) | 22 | 8U5T-14474-BB | |||
| 11 | CH123 (VT-GN) | 22 | EU5T-14474-BAA | |||
| 12 | LLF15 (WH-GN) | 22 | BU5T-14474-UA | |||
| 13 | RLF15 (GN-BU) | 22 | BU5T-14474-UA | |||
| 14 | SBB38 (BN-RD) | 14 | EU5T-14474-FA | |||
| 15 | CBB32 (WH-BN) | 16 | EU5T-14474-EA | |||
| 16 | CBB33 (WH-BN) | 16 | EU5T-14474-EA | |||
| 17 | SBBA5 (RD) | 10 | EU5T-14474-HA | |||
