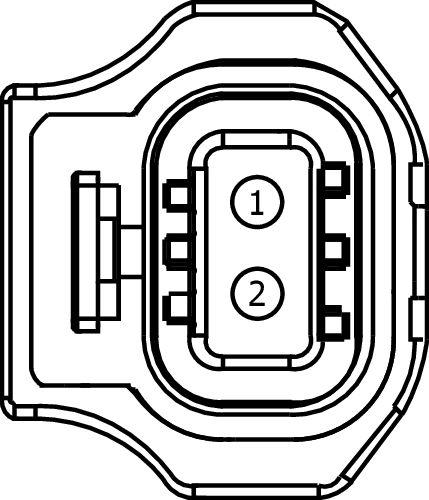

Connector End View (C190) - CRANKCASE VENTILATION HEATER
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C190 | CRANKCASE VENTILATION HEATER | BK | 12C508 | part# N/A | Not Available |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-SB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE328 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # POS. CRANKCASE VENTIL. FITTING HEATER CONTROL (PCVFHC) | EU5T-14474-SB | ||||
| 2 | CBK03 (GY) | 18 | FUSE - 8 OR CIRCUIT BREAKER | EU5T-14474-SB | ||||
