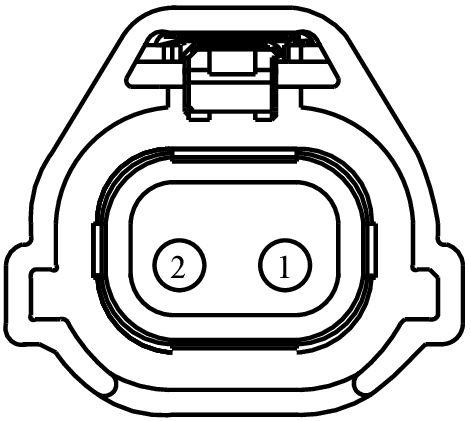

Connector End View (C181) - FUEL INJECTOR 1A
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C181 | FUEL INJECTOR 1A | GY | 14B485 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| XR8T-14474-CA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE205 (GN-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + | XR8T-14474-CA | ||||
| 2 | RE205 (YE-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - | XR8T-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1282
Service Part Number:
CU2Z-14S411-XA
Gauge:
16
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Fuel Injector
