Connector End View (C177) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C177	INLINE	NA	7G2767G276	Not Available

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
6W8T-14474-WA	EU2Z-14474-BA	1.20
8V5T-14421-AFA	LU2Z-14421-BA	1.20

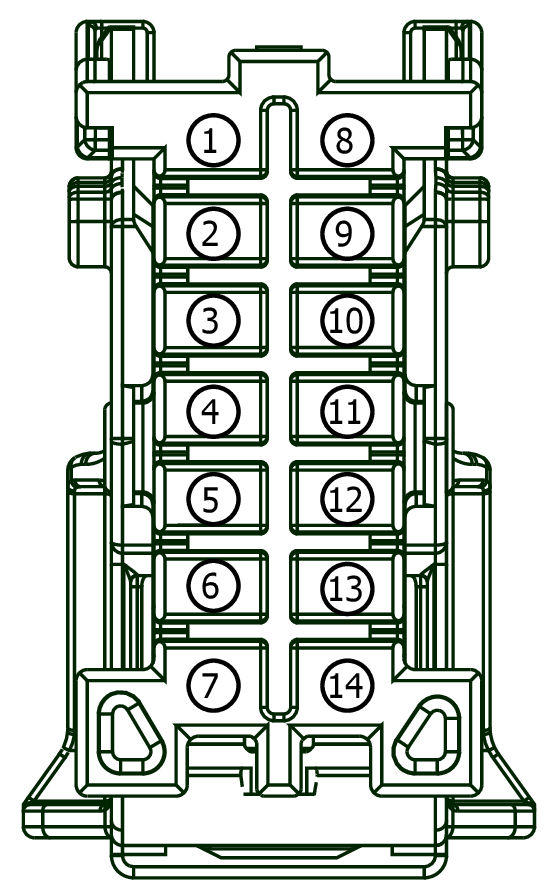

MALE

Harness

7G276

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	TRGND (BN-BU)	20	8V5T-14421-AFA
2	TFT (BN-YE)	20	8V5T-14421-AFA
3	PC5 (YE-VT)	20	8V5T-14421-AFA
4	PC6 (BU-GY)	20	8V5T-14421-AFA
5	TSPC1 (BU-GN)	20	8V5T-14421-AFA
6	SS3 (BU-BN)	20	8V5T-14421-AFA
7	PC8 (GY-BN)	20	8V5T-14421-AFA
8	PC1 (BU-GN)	20	8V5T-14421-AFA
9	PC2 (GN-BN)	20	8V5T-14421-AFA
10	PC3 (GY-OG)	20	8V5T-14421-AFA
11	PC4 (BN-WH)	20	8V5T-14421-AFA
12	TSPC2 (BN)	20	8V5T-14421-AFA
13	TASV (YE-OG)	20	8V5T-14421-AFA
	14	PC7 (GN-OG)	20	8V5T-14421-AFA

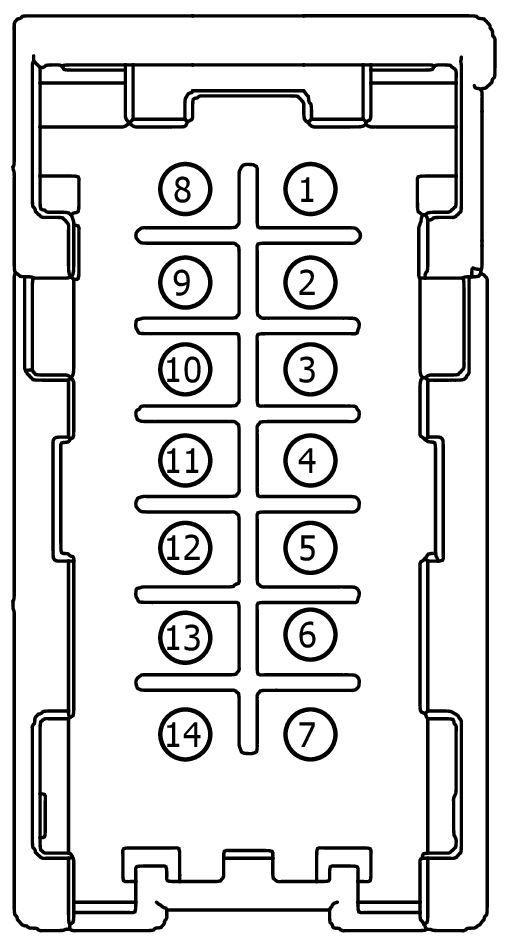

FEMALE

Harness

7G276

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	TRGND (BN-BU)	20	6W8T-14474-WA
2	TFT (BN-YE)	20	6W8T-14474-WA
3	PC5 (YE-VT)	20	6W8T-14474-WA
4	PC6 (BU-GY)	20	6W8T-14474-WA
5	TSPC1 (BU-GN)	20	6W8T-14474-WA
6	SS3 (BU-BN)	20	6W8T-14474-WA
6	TPSC (WH)	20	6W8T-14474-WA
7	PC8 (GY-BN)	20	6W8T-14474-WA
8	PC1 (BU-GN)	20	6W8T-14474-WA
9	PC2 (GN-BN)	20	6W8T-14474-WA
10	PC3 (GY-OG)	20	6W8T-14474-WA
11	PC4 (BN-WH)	20	6W8T-14474-WA
12	TSPC2 (BN)	20	6W8T-14474-WA
13	TASV (YE-OG)	20	6W8T-14474-WA
	14	PC7 (GN-OG)	20	6W8T-14474-WA
