Connector End View (C146) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C146	INLINE	BK	12A58114B060	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
JU5T-14474-AAA	Not Available
JU5T-14474-ABA	Not Available
BU5T-14421-HA	EU2Z-14421-CA	1.50
2L1T-14421-CA	EU2Z-14421-CA	1.50
JU5T-14474-ACA	Not Available
2L1T-14421-DA	EU2Z-14421-CA	1.50

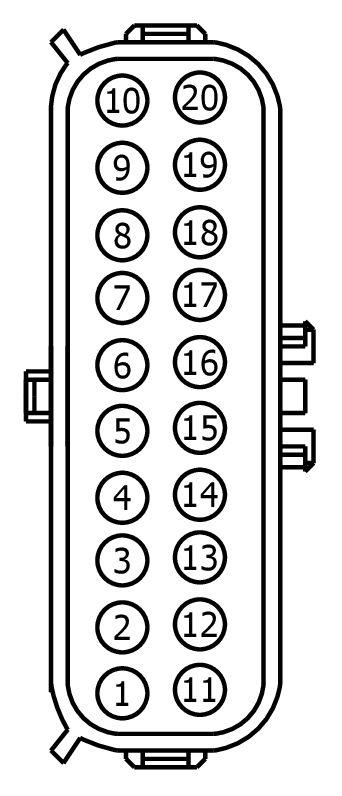

MALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CETA7 (GY-YE)	22	BU5T-14421-HA
1	VE474 (BU-GN)	22	BU5T-14421-HA
2	CBB25 (WH-BU)	20	BU5T-14421-HA
2	VE475 (WH-VT)	22	BU5T-14421-HA
3	GD132 (BN-VT)	20	BU5T-14421-HA
4	VDN03 (GY-VT)	20	BU5T-14421-HA
5	CE908 (BU-BN)	20	BU5T-14421-HA
5	LCD28 (BN-YE)	22	BU5T-14421-HA
6	CBK03 (GY)	16	2L1T-14421-CA
7	CBK03 (GY)	16	2L1T-14421-CA
8	VDC46 (BU-BN)	20	BU5T-14421-HA
9	VE181 (WH-GN)	22	BU5T-14421-HA
10	CDC25 (BN-GN)	14	2L1T-14421-DA
11	RCD28 (WH-VT)	22	BU5T-14421-HA
11	RE908 (BN-BU)	20	BU5T-14421-HA
12	VDB04 (BU)	22	BU5T-14421-HA
13	VDB05 (WH)	22	BU5T-14421-HA
14	CH401 (VT-WH)	22	BU5T-14421-HA
14	VCD11 (GY-VT)	22	BU5T-14421-HA
15	GD132 (BK-VT)	18	2L1T-14421-CA
16	GD909 (BK-WH)	14	BU5T-14421-HA\|2L1T-14421-DA
16	LH315 (WH-GN)	22	BU5T-14421-HA\|2L1T-14421-DA
17	VE462 (WH-BN)	22	BU5T-14421-HA
18	CBK03 (GY)	16	2L1T-14421-CA\|BU5T-14421-HA
18	CYE07 (WH-BN)	22	2L1T-14421-CA\|BU5T-14421-HA
19	LE424 (YE-GN)	22	BU5T-14421-HA
19	VE474 (BU-GN)	22	BU5T-14421-HA
20	RE407 (YE-VT)	22	BU5T-14421-HA
20	RE433 (BU-GY)	22	BU5T-14421-HA
	20	VE475 (WH-VT)	22	BU5T-14421-HA

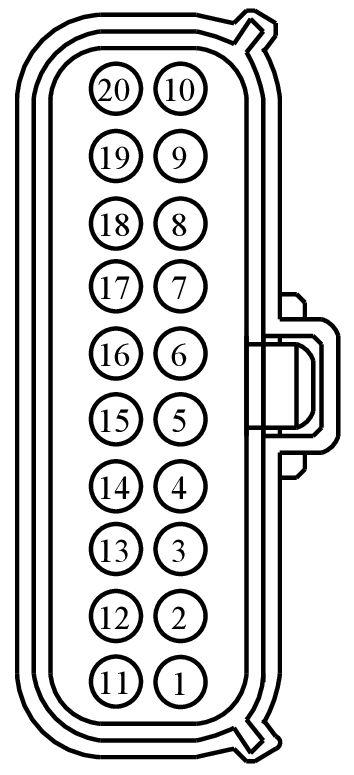

FEMALE

Harness

14B060

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CETA7 (GY-YE)	20	JU5T-14474-AAA
1	VE474 (BU-GN)	20	JU5T-14474-AAA
2	CBB25 (WH-OG)	20	JU5T-14474-AAA
2	VE475 (WH-VT)	20	JU5T-14474-AAA
3	GD132 (BN-VT)	20	JU5T-14474-AAA
4	VDN03 (GY-VT)	20	JU5T-14474-AAA
5	CE908 (BU-BN)	20	JU5T-14474-AAA
5	LCD28 (BN-YE)	22	JU5T-14474-AAA
6	CBK03 (GY)	16	JU5T-14474-ABA
7	CBK03 (GY)	16	JU5T-14474-ABA\|JU5T-14474-AAA
7	CBK03 (GY)	20	JU5T-14474-ABA\|JU5T-14474-AAA
8	RCD04 (BU-OG)	18	JU5T-14474-AAA\|JU5T-14474-ABA
8	VDC46 (BU-BN)	20	JU5T-14474-AAA\|JU5T-14474-ABA
9	VE181 (WH-GN)	14	JU5T-14474-AAA\|JU5T-14474-ACA
9	VE181 (WH-GN)	20	JU5T-14474-AAA\|JU5T-14474-ACA
10	CDC25 (BN-GN)	14	JU5T-14474-ACA
11	RCD28 (WH-VT)	22	JU5T-14474-AAA
11	RE908 (BN-BU)	20	JU5T-14474-AAA
12	VDB04 (BU)	20	JU5T-14474-AAA
13	VDB05 (WH)	20	JU5T-14474-AAA
14	CH401 (VT-WH)	20	JU5T-14474-AAA
14	VCD11 (GY-VT)	22	JU5T-14474-AAA
15	GD132 (BK-VT)	16	JU5T-14474-AAA\|JU5T-14474-ABA
15	GD132 (BK-VT)	20	JU5T-14474-AAA\|JU5T-14474-ABA
16	GD909 (BK-WH)	14	JU5T-14474-AAA\|JU5T-14474-ACA
16	LH315 (WH-GN)	20	JU5T-14474-AAA\|JU5T-14474-ACA
17	CCD04 (GY-YE)	18	JU5T-14474-AAA\|JU5T-14474-ABA
17	VE462 (WH-BN)	20	JU5T-14474-AAA\|JU5T-14474-ABA
18	CBK03 (GY)	16	JU5T-14474-ABA\|JU5T-14474-AAA
18	CBK03 (GY)	20	JU5T-14474-ABA\|JU5T-14474-AAA
18	CYE07 (WH-BN)	20	JU5T-14474-ABA\|JU5T-14474-AAA
19	LE424 (YE-GN)	20	JU5T-14474-AAA
19	VE474 (BU-GN)	20	JU5T-14474-AAA
20	RE407 (YE-VT)	20	JU5T-14474-AAA
20	RE433 (BU-GY)	20	JU5T-14474-AAA
	20	VE475 (WH-VT)	20	JU5T-14474-AAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1567

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-HB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline

Pigtail Kit Part Number WPT-889

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-GA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
For Mating Connector Refer To WPT-890
