Connector End View (C140) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C140 | INLINE | LT GY | 1552512A581 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 2L1T-14421-CA | EU2Z-14421-CA | 1.50 |
| BU5T-14421-HA | EU2Z-14421-CA | 1.50 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| 1F1T-14474-GA | DU2Z-14474-FA | 2.80 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.50 |
| 97BG-14421-BFA | EU2Z-14421-FA | 2.80 |

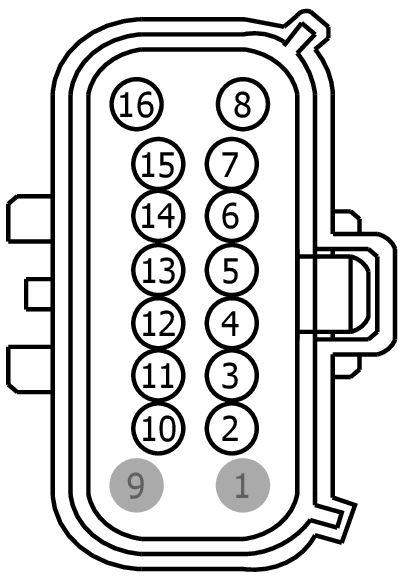

MALE
Harness
15525
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CCF03 (GY-BN) | 20 | 2L1T-14421-CA | |||
| 3 | CCF07 (BN-GN) | 16 | 2L1T-14421-CA | |||
| 4 | CCF08 (GY-OG) | 16 | 2L1T-14421-CA | |||
| 5 | VE474 (BU-GN) | 20 | BU5T-14421-HA | |||
| 6 | VE475 (WH-VT) | 20 | BU5T-14421-HA | |||
| 7 | CBK02 (GN) | 16 | 2L1T-14421-CA | |||
| 8 | GD113 (BK-YE) | 14 | 97BG-14421-BFA | |||
| 9 | * | * | N/A | |||
| 10 | CETA7 (GY-YE) | 18 | 2L1T-14421-CA | |||
| 11 | RCF09 (BN-WH) | 20 | BU5T-14421-HA | |||
| 12 | CCF14 (GN-OG) | 20 | BU5T-14421-HA | |||
| 13 | CCF15 (BN-YE) | 20 | BU5T-14421-HA | |||
| 14 | CCF17 (WH-OG) | 20 | BU5T-14421-HA | |||
| 15 | CCF16 (VT-GN) | 20 | BU5T-14421-HA | |||
| 16 | CBB67 (GN-BN) | 14 | 97BG-14421-BFA | |||

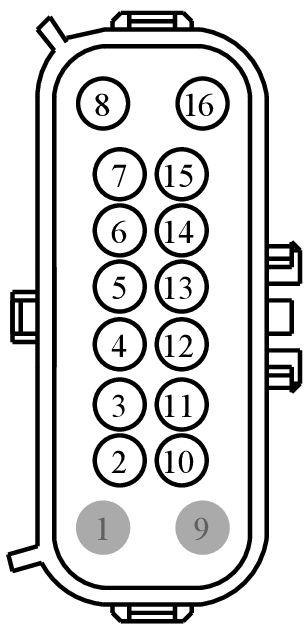

FEMALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | * | * | N/A | |||
| 2 | CCF03 (GY-BN) | 20 | BU5T-14474-UA | |||
| 3 | CCF07 (BN-GN) | 16 | 7C3T-14474-DA | |||
| 4 | CCF08 (GY-OG) | 16 | 7C3T-14474-DA | |||
| 5 | VE474 (BU-GN) | 22 | BU5T-14474-UA | |||
| 6 | VE475 (WH-VT) | 22 | BU5T-14474-UA | |||
| 7 | CBK02 (GN) | 14 | 7C3T-14474-EA | |||
| 8 | GD113 (BK-YE) | 16 | 1F1T-14474-GA | |||
| 9 | * | * | N/A | |||
| 10 | CETA7 (GY-YE) | 22 | BU5T-14474-UA | |||
| 11 | RCF09 (BN-WH) | 22 | BU5T-14474-UA | |||
| 12 | CCF14 (GN-OG) | 22 | BU5T-14474-UA | |||
| 13 | CCF15 (BN-YE) | 22 | BU5T-14474-UA | |||
| 14 | CCF17 (WH-OG) | 22 | BU5T-14474-UA | |||
| 15 | CCF16 (VT-GN) | 22 | BU5T-14474-UA | |||
| 16 | CBB67 (GN-BN) | 16 | 1F1T-14474-GA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1092
Service Part Number:
AU2Z-14S411-AKA
Gauge:
12 16
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1660
Service Part Number:
LU2Z-14S411-AHA
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
