Connector End View (C139) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C139	INLINE	BK	12C50812A581	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
2L1T-14421-CA	EU2Z-14421-CA	1.50
1F1T-14474-GA	DU2Z-14474-FA	2.80
BU5T-14474-UA	DU2Z-14474-DA	1.50
1F1T-14474-JA	DU2Z-14474-FA	2.80
1F1T-14421-GA	EU2Z-14421-FA	2.80
1F1T-14421-JA	EU2Z-14421-FA	2.80
3F2T-14421-GA	EU2Z-14421-FA	2.80

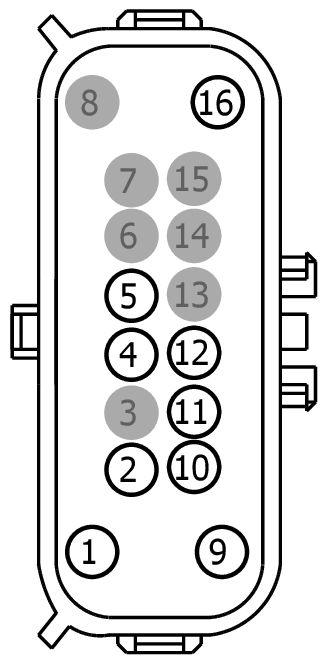

MALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

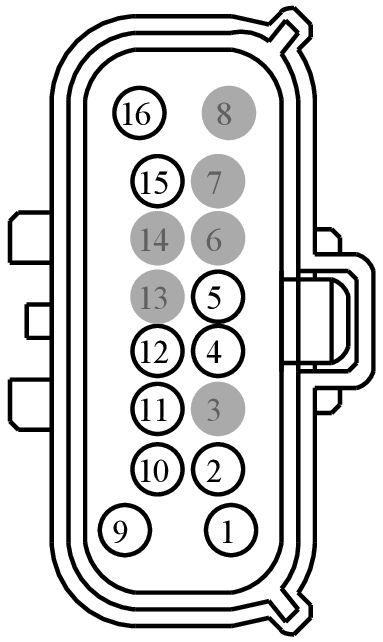

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT)	12	3F2T-14421-GA
1	CBK04 (VT)	12	1F1T-14421-JA
2	CBK03 (GY)	16	2L1T-14421-CA
2	CBK03 (GY)	18	2L1T-14421-CA
3	*	*	N/A
4	GD120 (BK-GN)	18	2L1T-14421-CA
5	RE238 (BU-BN)	18	2L1T-14421-CA
5	RE454 (YE-GN)	18	2L1T-14421-CA
6	*	*	N/A
7	*	*	N/A
8	*	*	N/A
9	CBK01 (BU)	16	1F1T-14421-GA
9	CBK01 (BU)	18	1F1T-14421-GA
10	LE152 (BN-BU)	18	2L1T-14421-CA
10	VE921 (GY-BU)	18	2L1T-14421-CA
11	LE423 (GN-VT)	16	2L1T-14421-CA
11	LE424 (YE-GN)	18	2L1T-14421-CA
12	CE435 (YE-BU)	18	2L1T-14421-CA
12	VE175 (WH-BN)	18	2L1T-14421-CA
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A
16	CBK02 (GN)	16	1F1T-14421-GA
	16	CBK02 (GN)	18	1F1T-14421-GA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT-RD)	16	1F1T-14474-GA
2	CBK03 (GY)	16	7C3T-14474-DA
3	*	*	N/A
4	GD132 (BK-VT)	16	7C3T-14474-DA
5	RE480 (WH)	20	BU5T-14474-UA
6	*	*	N/A
7	*	*	N/A
8	*	*	N/A
9	CBK01 (BU)	18	1F1T-14474-GA
10	CE446 (VT-GY)	20	BU5T-14474-UA
11	LE477 (GY-YE)	20	BU5T-14474-UA
12	VE175 (BN-WH)	22	BU5T-14474-UA
13	*	*	N/A
14	*	*	N/A
15	CE447 (WH-OG)	22	BU5T-14474-UA
	16	CBK02 (GN)	14	1F1T-14474-JA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1393

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-KB

Gauge:

14 18

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
For Mating Connector Refer To WPT-1142

Pigtail Kit Part Number WPT-1541

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-KA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
In-Line - Auxiliary Engine Connector
Module - Glow Plug
