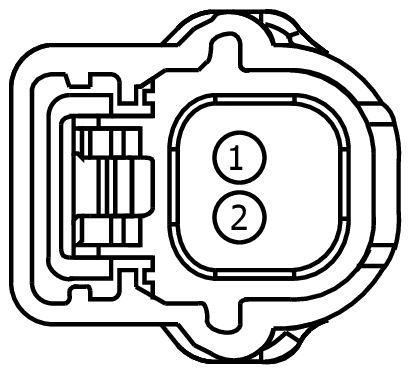

Connector End View (C138) - WINDSHIELD WASHER FLUID LEVEL SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C138 | WINDSHIELD WASHER FLUID LEVEL SENSOR | GY | 12A581 | part# N/A | Not Available |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC20 (GY-VT) | 20 | SWITCH - LOW LEVEL WASHER FLUID | 3F2T-14474-RA | ||||
| 2 | GD131 (BK-GY) | 20 | GROUND - HEADLAMP PANEL/GOR RIGHT | 3F2T-14474-RA | ||||
