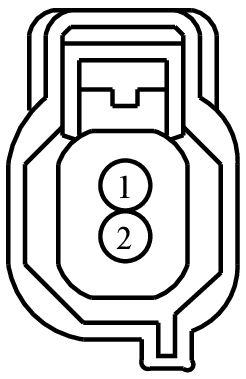

Connector End View (C133) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C133 | INLINE | GY | 14K01114B242 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ADA | Not Available | |
| 7C3T-14474-RA | LU2Z-14474-CA | 1.50 |
MALE
Harness
14K011
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VRA01 (GY-YE) | 20 | 97BG-14421-ADA | |||
| 2 | VRA02 (VT-WH) | 20 | 97BG-14421-ADA | |||
FEMALE
Harness
14B242
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VRA01 (GY-YE) | 20 | 7C3T-14474-RA | |||
| 2 | VRA02 (VT-WH) | 20 | 7C3T-14474-RA | |||

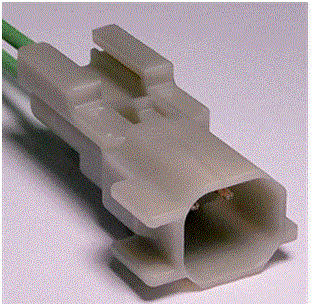

Available Pigtail Kits
Pigtail Kit Part Number WPT-1618
Service Part Number:
KU2Z-14S411-LA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Antenna - Keyless Entry
- Connector - Inline
- Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1116
Service Part Number:
AU2Z-14S411-BJA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Lamp - Running Board
- Sensor - Knock
- Sensor - Speed
- Sensor - Water in Fuel
