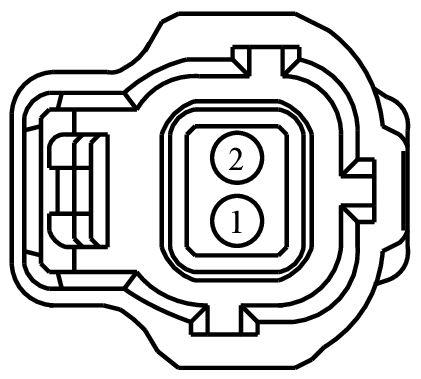

Connector End View (C129) - INTAKE AIR TEMPERATURE (IAT) SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C129	INTAKE AIR TEMPERATURE (IAT) SENSOR	BK	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
98AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	98AG-14474-AA
2	RE230 (GN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER	98AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Resistor - Daytime Running Lamp (DRL)
Sensor - Air Charge Temperature
Sensor - Brake Pressure
Solenoid - Canister Vent
Switch - Brake Pressure
