Connector End View (C117) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C117	INLINE	BK	12A5813D097	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA	EU2Z-14421-CA	1.50
BU5T-14474-UA	DU2Z-14474-DA	1.50
2L1T-14421-CA	EU2Z-14421-CA	1.50

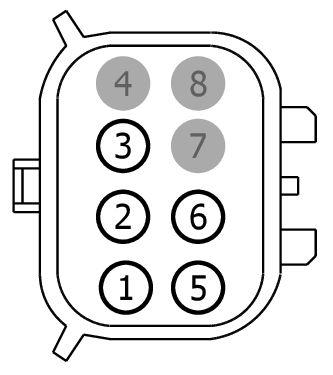

MALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	LCD27 (YE-GY)	22	BU5T-14421-HA
1	LLF15 (WH-GN)	22	BU5T-14421-HA
2	RCD27 (WH-GN)	22	BU5T-14421-HA
2	RLF15 (GN-BU)	22	BU5T-14421-HA
3	VCD10 (BN)	22	BU5T-14421-HA
3	VLF15 (GN)	22	BU5T-14421-HA
4	*	*	N/A
5	CCD03 (WH-BU)	18	2L1T-14421-CA
6	RCD03 (VT-BN)	18	2L1T-14421-CA
7	*	*	N/A
	8	*	*	N/A

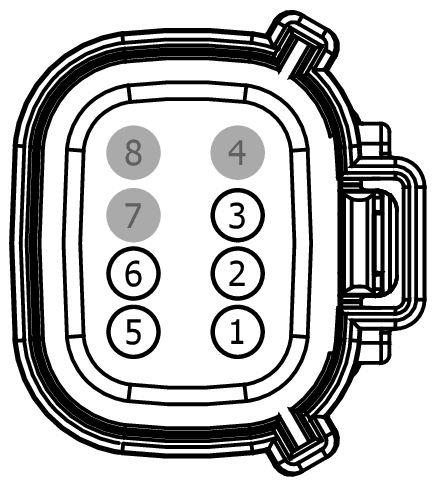

FEMALE

Harness

3D097

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	LLF15 (WH-GN)	20	BU5T-14474-UA
2	RLF15 (GN-BU)	20	BU5T-14474-UA
3	VLF15 (GN)	20	BU5T-14474-UA
4	*	*	N/A
5	CCD03 (WH-BU)	18	7C3T-14474-DA
6	RCD03 (VT-BN)	18	7C3T-14474-DA
7	*	*	N/A
	8	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Flashing LED
Lamp - Park/Turn/Stop
Mirror - Sideview
Mirror - Sideview / Heated
Module - Anti-Lock Brake System

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Actuator - Door Lock - Decklid/Liftgate
Actuator - Door Lock - LH - Sliding Door
Actuator - Door Lock - RH - Sliding Door
Connector - Inline
Inflator - Safety Belt
