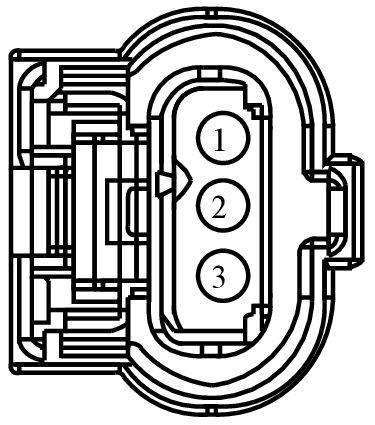

Connector End View (C111) - IGNITION COIL-ON-PLUG 1

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C111	IGNITION COIL-ON-PLUG 1	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)	EU5T-14474-GAB
2	GD108 (BK-VT)	16	GROUND - CHASSIS / BATTERY	EU5T-14474-GAB
3	CBK04 (VT)	16	FUSE - 9 OR CIRCUIT BREAKER	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Coil - Ignition
Sensor - Fuel Low Pressure
