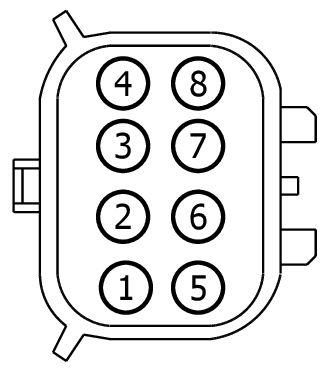

Connector End View (C109) - KNOCK SENSOR (KS)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C109	KNOCK SENSOR (KS)	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
CU5T-14421-BA	EU2Z-14421-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE829 (GN-BU)	22	SENSOR - KNOCK 2ND BANK 2ND	CU5T-14421-BA
2	RE345 (VT-GY)	22	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 2ND	CU5T-14421-BA
3	VE802 (BN-BU)	22	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]	CU5T-14421-BA
4	RE324 (BN-GN)	22	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]	CU5T-14421-BA
5	VE828 (YE-OG)	22	SENSOR - KNOCK 1ST BANK 2ND	CU5T-14421-BA
6	RE344 (BN-GN)	22	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 2ND	CU5T-14421-BA
7	VE801 (VT-OG)	22	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	CU5T-14421-BA
8	RE323 (WH-BN)	22	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	CU5T-14421-BA
