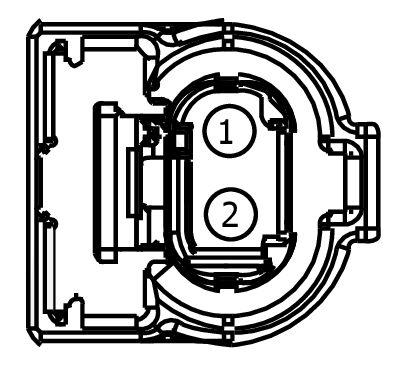

Connector End View (C107) - CYLINDER HEAD TEMPERATURE 2 (CHT2) SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C107	CYLINDER HEAD TEMPERATURE 2 (CHT2) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	EU5T-14474-GAB
2	RE401 (GN-BU)	18	CTRL MOD. - POWERTRAIN # SCREEN GROUNDS -	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Side Impact
Sensor - Transfer Case Temperature
Sensor - Transmission Fluid Temperature
Solenoid - Variable Oil Pump Control
