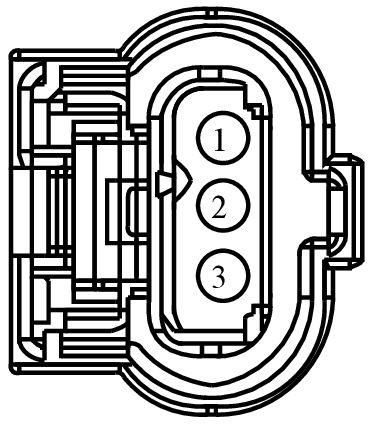

Connector End View (C106) - FUEL RAIL PRESSURE (FRP) SENSOR

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C106	FUEL RAIL PRESSURE (FRP) SENSOR	BK	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	EU5T-14474-GAB
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	EU5T-14474-GAB
3	VE727 (BU-BN)	18	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	EU5T-14474-GAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Coil - Ignition
Sensor - Fuel Low Pressure
