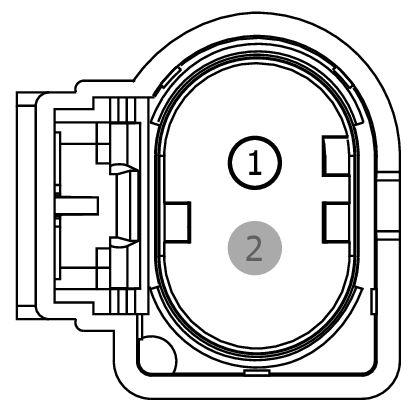

Connector End View (C102A) - GENERATOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C102A | GENERATOR | BK | 14B060 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-LB | Not Available | |
| EU5T-14474-KB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE181 (WH-GN) | 20 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 | EU5T-14474-KB|EU5T-14474-LB | ||||
| 1 | VE181 (WH-GN) | 14 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 | EU5T-14474-KB|EU5T-14474-LB | ||||
| 2 | * | * | Not Used | N/A | ||||
Available Pigtail Kits

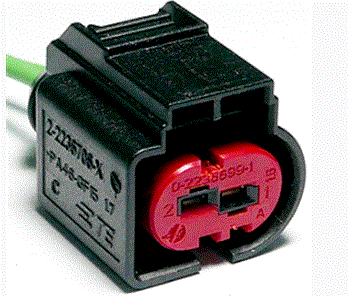

Pigtail Kit Part Number WPT-1656
Service Part Number:
LU2Z-14S411-ACA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Alternator
- Fuel Injector
- Module - Alternator Control
- Pump - Fuel Injection
