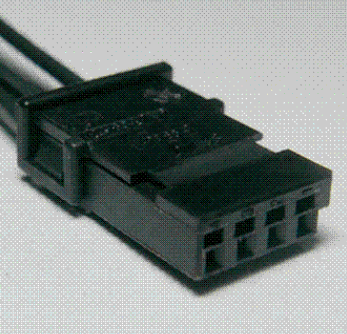

Connector End View (C9800) - INTRUSION SENSOR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
15A404
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP11 (BU-RD) | 22 | FUSE - 11 OR CIRCUIT BREAKER | |
| 2 | VDN03 (GY-VT) | 22 | CTRL MOD. - LIN BUS # SPDJB 3 | |
| 3 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1493 |
Service Part Number: HU2Z-14S411-EA Gauge: 20 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Sensor - Intrusion |
