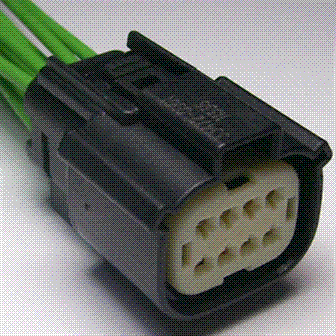

Connector End View (C9124) - Inline
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 14A411
FEMALE
Harness POA
| Pin | Circuit | Gauge | Qualifier |
| 1 | * (*) | * | POA |
| 1 | CBB34 (VT-BN) | 20 | 14A411 |
| 2 | * (*) | * | POA |
| 2 | VMP24 (WH) | 22 | 14A411 |
| 3 | * (*) | * | POA |
| 3 | VMP39 (BU-OG) | 22 | 14A411 |
| 4 | * (*) | * | POA |
| 4 | VMP44 (VT-GY) | 22 | 14A411 |
| 5 | * (*) | * | POA |
| 5 | DMP38 (BK) | 20 | 14A411 |
| 6 | * (*) | * | POA |
| 6 | GD347 (BK-VT) | 22 | 14A411 |
| 7 | * (*) | * | POA |
| 7 | CLN06 (WH) | 22 | 14A411 |
| 8 | * (*) | * | POA |
| 8 | CLS52 (BN) | 22 | 14A411 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1407 |
Service Part Number: FU2Z-14S411-DA Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1415 |
Service Part Number: FU2Z-14S411-DB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1310 |
Service Part Number: CU2Z-14S411-AZA Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Sensor - O2 (HEGO/ EGO) |
