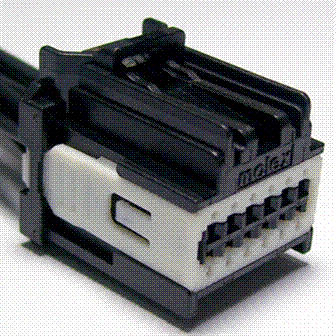

Connector End View (C9120) - UPFITTER SWITCH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
15A404
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 4 | CAC05 (YE) | 22 | RELAY - UPFITTER #1 | |
| 5 | SB104 (GN-RD) | 20 | FUSE - 4 OR CIRCUIT BREAKER | |
| 6 | CAC06 (GN-BN) | 22 | RELAY - UPFITTER #2 | |
| 7 | CAC14 (YE-OG) | 22 | RELAY - UPFITTER #6 | |
| 8 | CAC13 (BU-OG) | 22 | RELAY - UPFITTER #5 | |
| 9 | CAC08 (BN) | 22 | RELAY - UPFITTER #4 | |
| 10 | CAC07 (VT-GN) | 22 | RELAY - UPFITTER #3 | |
| 11 | CBP22 (GN-OG) | 20 | FUSE - 22 OR CIRCUIT BREAKER | |
| 12 | VLN04 (VT-GY) | 18 | CTRL MOD. - IP/SWITCH ILLUMINATION |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1401 |
Service Part Number: EU2Z-14S411-SA Gauge: 20 Pin material: Tin Cavities: 12 Vehicle Uses Module - Climate Control Seat Module - Heated Seat (Rear) Module - Image Processing Module - Media Gateway Module - Power Steering Monitor - Video/DVD |
