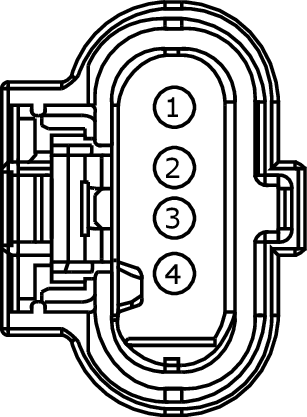

Connector End View (C4851) - REDUCTANT QUALITY MODULE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14D378
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | 106 (BK) | 20 | GND | |
| 2 | 121 (BN) | 20 | CAN2 + | |
| 3 | 120 (BK) | 20 | CAN2 - | |
| 4 | 119 (BU) | 20 | VPWR |
| Available Pigtail Kits | |

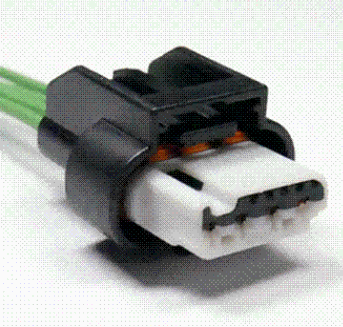

| Pigtail Kit Part Number: WPT-1537 |
Service Part Number: JU2Z-14S411-ACA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Differential Oil Temperature Module - Particulate Matter Bank Sensor Module - Reductant Quality Noise Generator Sensor - Fuel rail Pressure and Temperature Sensor - Manifold Pressure/Intake Temperature Sensor - Turbo Intake Pressure/Temperature Valve - Active Exhaust Solenoid |
