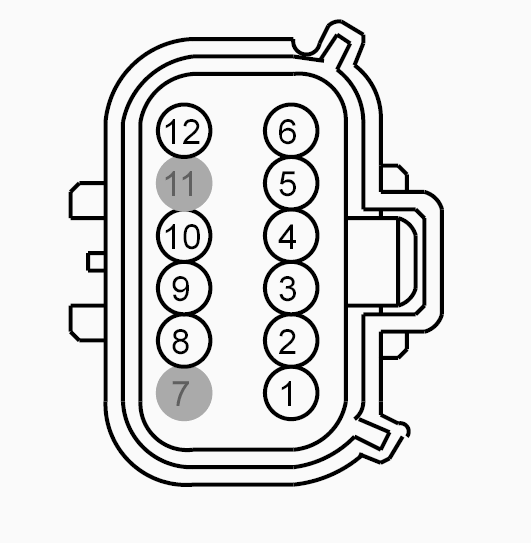

Connector End View (C4484) - REAR LAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GY
Harness
13A409
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD477 (BU) | 20 | GROUND - FRAME REAR LEFT #2 | |
| 2 | CLS19 (VT-OG) | 20 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
| 3 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | |
| 4 | CLS10 (GN-BN) | 20 | CTRL MOD. - REVERSE LEFT OR COMMON | |
| 5 | CBB34 (VT-BN) | 20 | FUSE - 34 OR CIRCUIT BREAKER | |
| 6 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 7 | * | * | Not Used | |
| 8 | GD477 (BU) | 20 | GROUND - FRAME REAR LEFT #2 | |
| 9 | GD477 (BU) | 20 | GROUND - FRAME REAR LEFT #2 | |
| 10 | CLS54 (BU-OG) | 20 | LAMP - TURN REAR RIGHT # SIGNAL OUT | |
| 11 | * | * | Not Used | |
| 12 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
