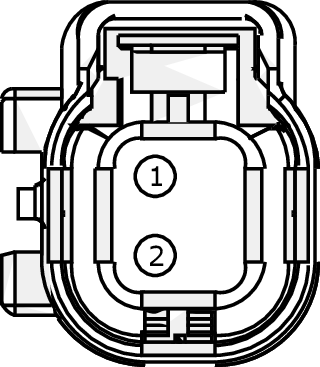

Connector End View (C3602) - EXHAUST GAS TEMPERATURE (EGT) SENSOR 2
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14406
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE406 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | |
| 2 | VE723 (GN-VT) | 20 | SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + |
