Connector End View (C3368A) - REAR WINDOW DEFROST GRID
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD347 (BK-VT) | 12 | GROUND - PILLAR C OR QUARTER PANEL LEFT |
| Available Pigtail Kits | |

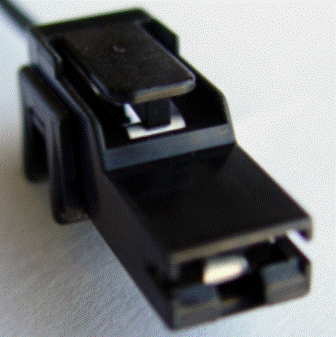

| Pigtail Kit Part Number WPT-371 |
Service Part Number: 3U2Z-14S411-KBA Gauge: 10 Pin material: Tin Cavities: 1 Vehicle Uses Cigar Lighter Horn Lamp - CHMSL (Center High Mount Stop Lamp) Module - Isolater Antenna Module - Radio Power Antenna Relay - Starter Motor Switch - Park Brake Terminal - Rear Window Defroster Grid |

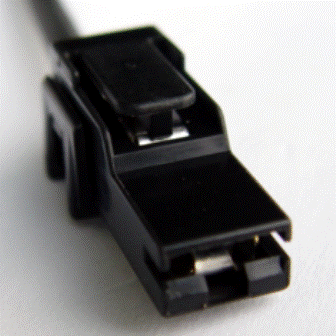

| Pigtail Kit Part Number WPT-434 |
Service Part Number: 3U2Z-14S411-MFA Gauge: 16 18 Pin material: Tin Cavities: 1 Vehicle Uses Lamp - Map |
