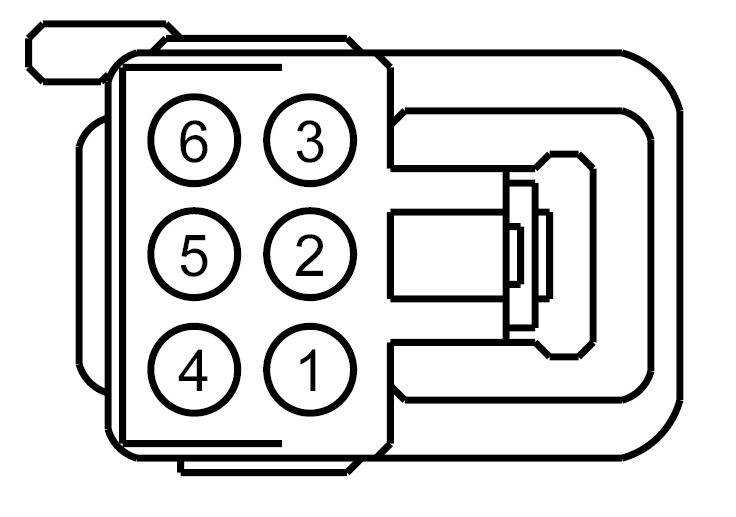

Connector End View (C3304B) - HEATED SEAT MODULE, REAR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
GN
Harness
14B687
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB83 (BU-RD) | 20 | FUSE - 83 OR CIRCUIT BREAKER | |
| 2 | CBP36 (BU-BN) | 22 | FUSE - 36 OR CIRCUIT BREAKER | |
| 3 | SBB83 (BU-RD) | 20 | FUSE - 83 OR CIRCUIT BREAKER | |
| 4 | CHS58 (WH) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | |
| 5 | GD347 (BK-VT) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT | |
| 6 | CHS54 (WH-GN) | 20 | CTRL MOD. - REAR HEATED SEAT RIGHT # CUSHION HEATER + |

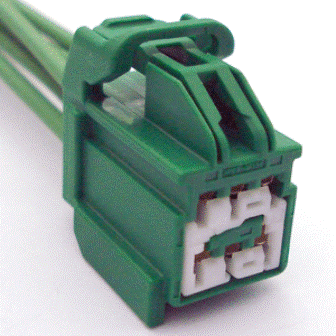

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1032 |
Service Part Number: 9U2Z-14S411-XA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Module - Climate Control Seat Module - Heated Seat |
