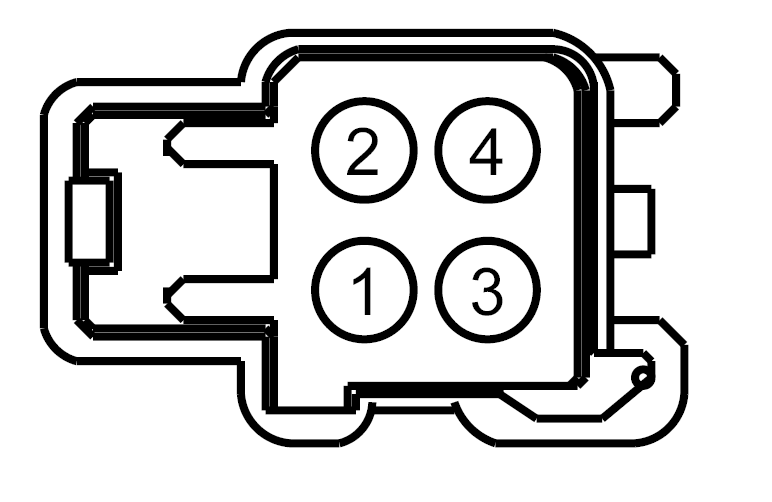

Connector End View (C3298) - SEAT CUSHION HEATER, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS02 (YE-BU) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + | |
| 2 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER | |
| 3 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | |
| 4 | CHS12 (YE-GN) | 16 | HEATER - PASSENGER CUSHION / BACK |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |
