Connector End View (C3265C) - FRONT SEAT CLIMATE CONTROL MODULE (SCME)
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BK
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 2 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 3 | VHS23 (BN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL | |
| 4 | VHS21 (BU-WH) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | RHS08 (VT-WH) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | |
| 8 | CHS08 (BN-YE) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | VHS18 (BN-GN) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL | |
| 12 | CHS09 (GY) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | |
| 16 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + |

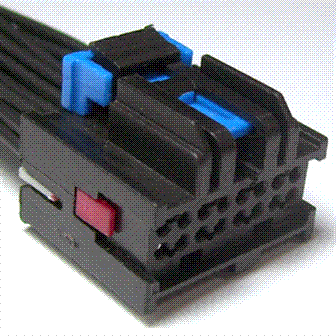

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1165 |
Service Part Number: AU2Z-14S411-BGA Gauge: 20 Pin material: Tin Cavities: 16 Vehicle Uses Module - Climate Control Seat |
