Connector End View (C3216) - LUMBAR MOTOR, PASSENGER SEAT
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
Harness
14D233
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS19 (GY-VT) | 18 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 2 | CPS18 (BN-GN) | 18 | SWITCH - DRIVER LUMBAR PUMP |

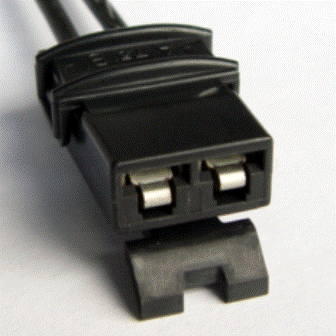

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-687 |
Service Part Number: 3U2Z-14S411-ZAA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Air Suspension Compressor Switch - Dimmer (Instrument Panel) |
