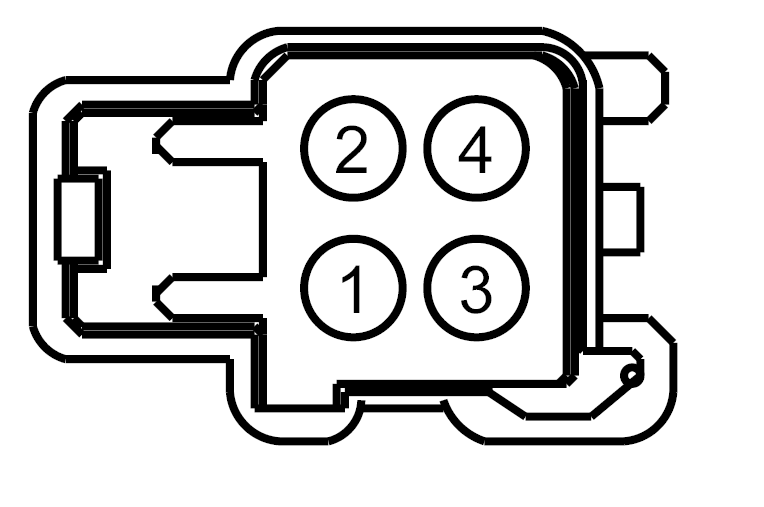

Connector End View (C3167) - SEAT CUSHION HEATER, LEFT REAR
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
LT GY
Harness
14B687
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS58 (WH) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | |
| 2 | VHS42 (GN) | 22 | SENSOR - CUSHION TEMP REAR LEFT | |
| 3 | RHS41 (GN-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP | |
| 4 | RHS58 (YE-OG) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |
