Connector End View (C3154C) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Color
BU
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME01 (GN-VT) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 + | |
| 2 | VME02 (VT) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 + | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SBP28 (GN-RD) | 14 | FUSE - 28 OR CIRCUIT BREAKER | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME01 (GY) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 - | |
| 10 | RME02 (YE) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 - | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | GD347 (BK-VT) | 14 | GROUND - PILLAR C OR QUARTER PANEL LEFT | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |

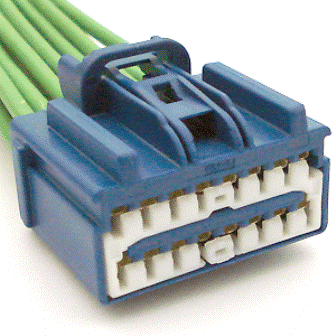

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-959 |
Service Part Number: 3U2Z-14S411-BDAB Gauge: 14 Pin material: Silver Cavities: 16 Vehicle Uses Radio - Amplifier |
